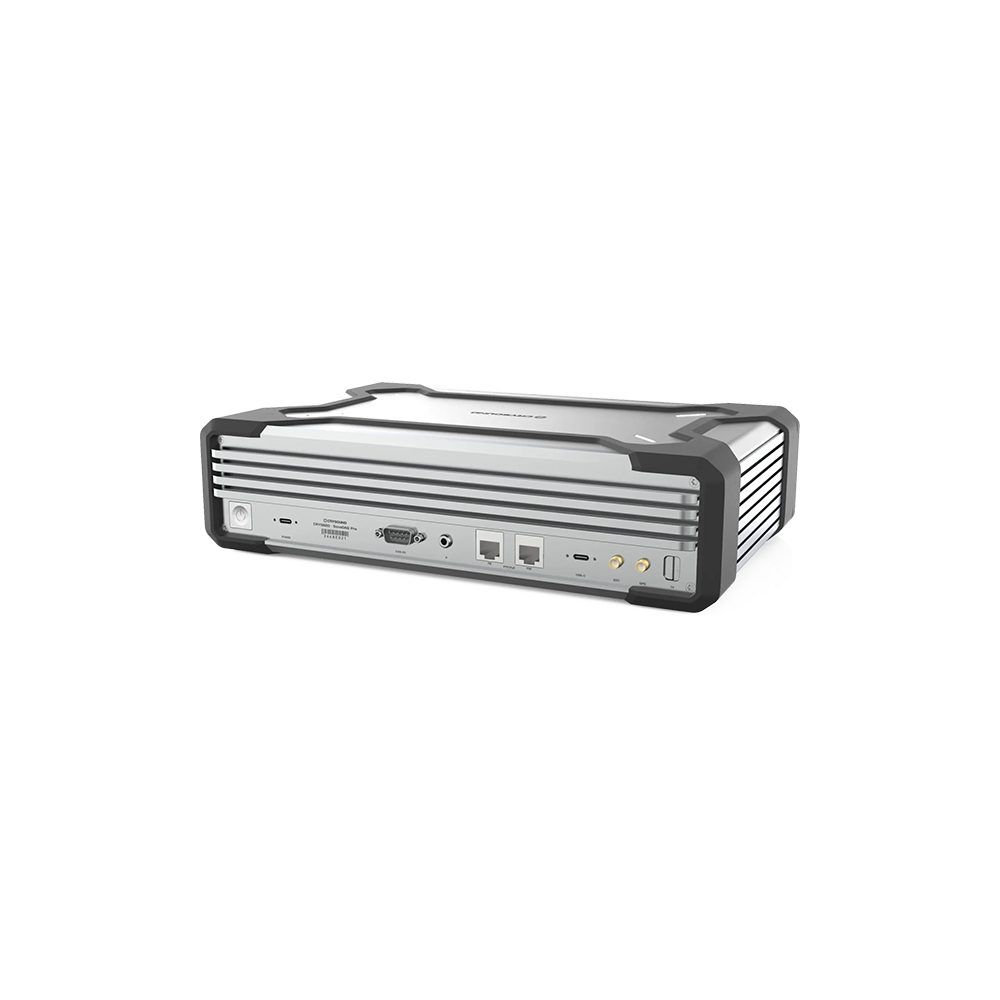

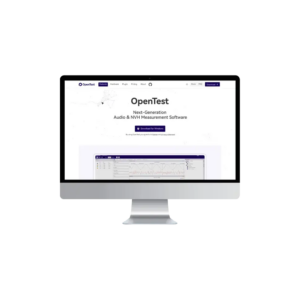

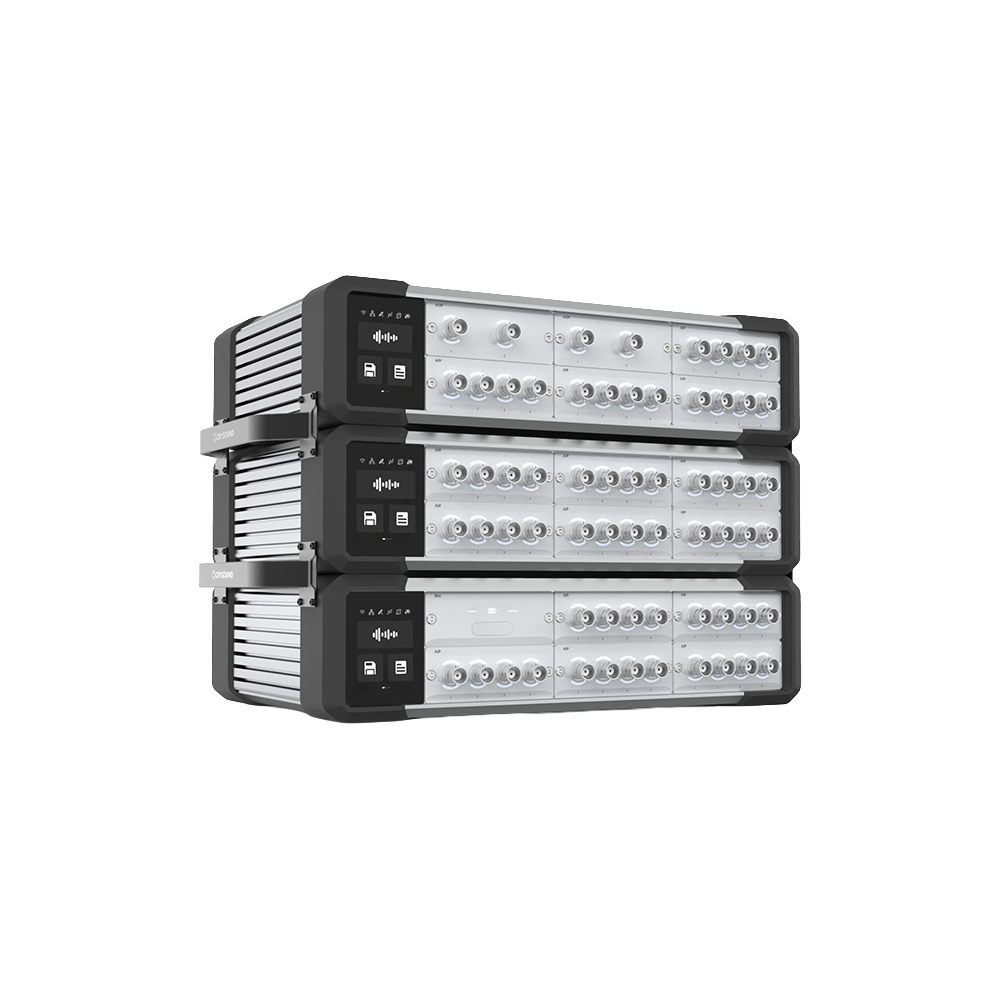

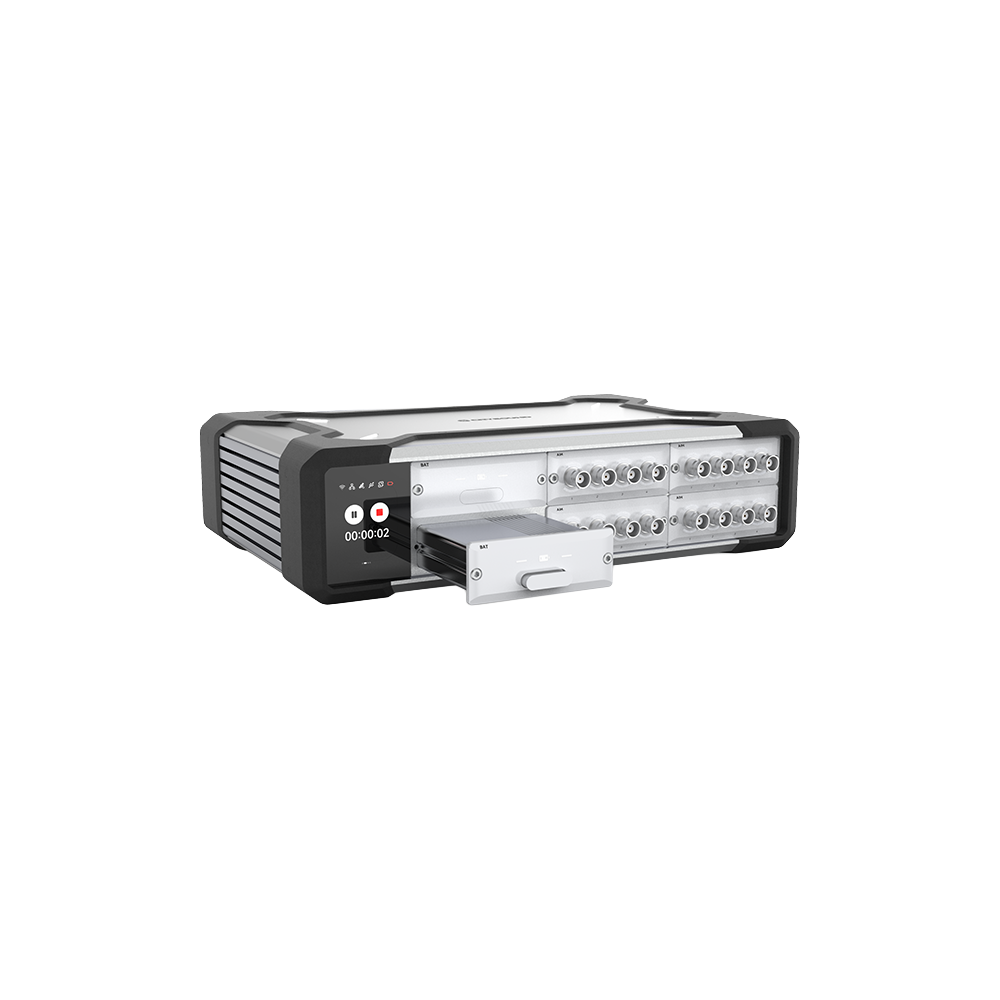

CRYSOUND has launched the new CRY5820 SonoDAQ Pro data acquisition system, seamlessly integrated with the OpenTest software platform. Featuring modular scalability, wide dynamic range, and precise PTP/GPS synchronization, SonoDAQ Pro ensures stable and reliable operation in both laboratory and field environments.
The system is widely applied in automotive NVH testing, aerospace, consumer electronics, and industrial machinery. By combining high-precision data acquisition with intelligent analysis, SonoDAQ and OpenTest deliver a complete workflow—from multi-channel acquisition and real-time monitoring to advanced processing and automated reporting—significantly enhancing testing efficiency and engineering reliability.
| lsolation | 1000V |
|---|---|
| Channel | 24 channels/Mainframe |
| Interface | USB-C / 2 x GLAN / 2 x CAN FD / WIFI |
| Synchronization | PTP (IEEE 1588)/ GPS |
| Power Supply | DC / PoE++ / Battery |
| Internal Storage | 256GB microSD card (2TB optional) |
| Calibration | Self-calibration/On-site calibration service |
| Firmware Upgrade | OTA/Browser |
| Operating Temperature | -10 to +50 °C (14 to 122 °F) |
| Heat Dissipation | Fanless |
| Level of Protection | IP43 |
| Edge AI | 6 TOPS NPU |
Need help choosing the right configuration?
Send us your product inquiry and we’ll help you select the right setup.
CRY5820
