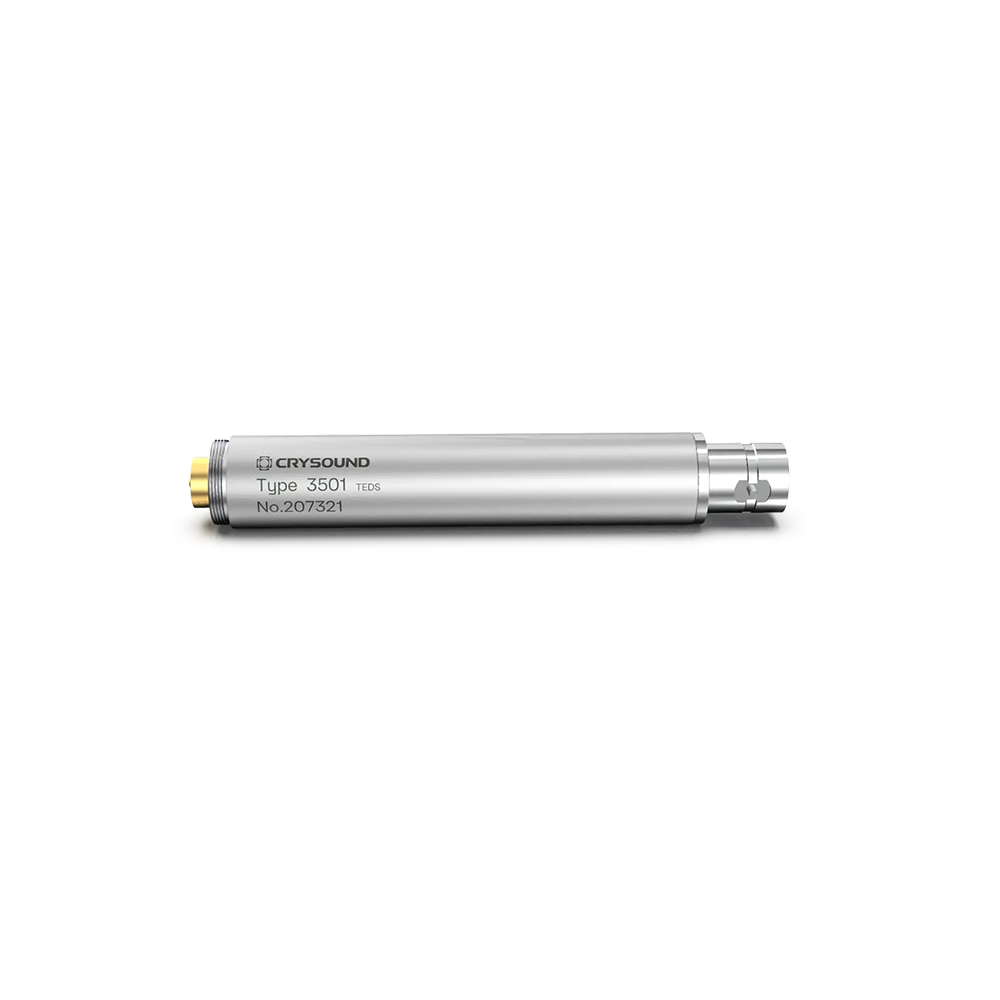

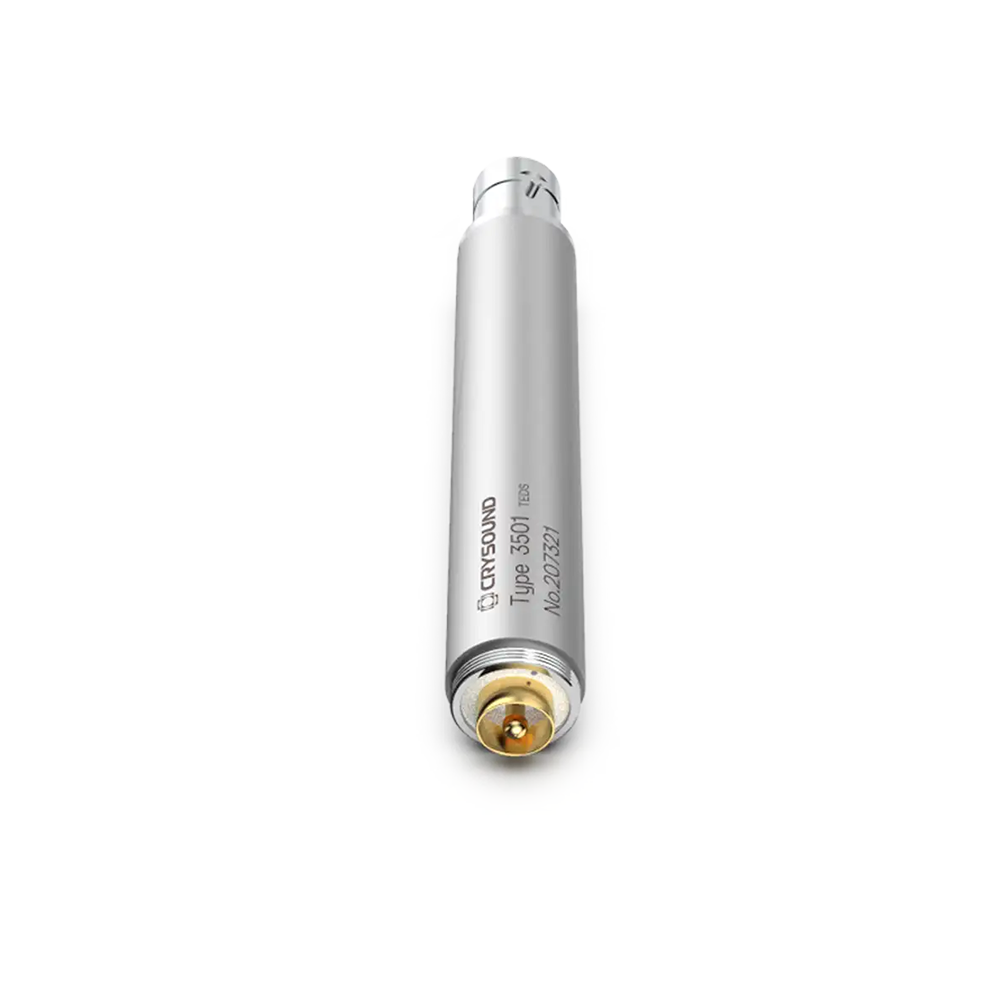

CRY3501 is a preamplifier powered by a constant current power supply. It can be used in conjunction with the CRY3000 series 1/2 inch prepolarized measurement microphone. At the same time, it is widely compatible with other brands.
CRY3501 converts high input impedance to low output impedance, allowing the use of a longer extension cable. Its advantage of low background noise hardly causes a load to the microphone. It supports TEDS function, which can reduce test time. Its good design and toughness make it widely applicable to various environmental conditions.
| Size | 1/2″ |
|---|---|
| Frequency Response Range | 1Hz to 200kHz±0.2 dB |
| Output Impedance | ＜50Ω |
| Nominal Operating Current | 4 mA |
| Noise, linearity (20 ~ 20kHz) | < 7 µV rms |
| Connector Type | BNC |
| Threaded Coupling | 11.7-60 UNS |
| Length | 80mm(3.15'') |
| Input Impedance | >6,0.4pF |
| Distortion (THD) | ＜ 0.1% |
| Power Supply | 2 mA to 20mA (Typical 4mA) |
| Noise, A-weighting | < 2.6 µV rms |
| Bias Voltage | 12V±2V |
| Operating Temperature | -30 to +70℃ (-22 to +158℉) |
| Diameter | 12.7mm ( 0.5'') |
