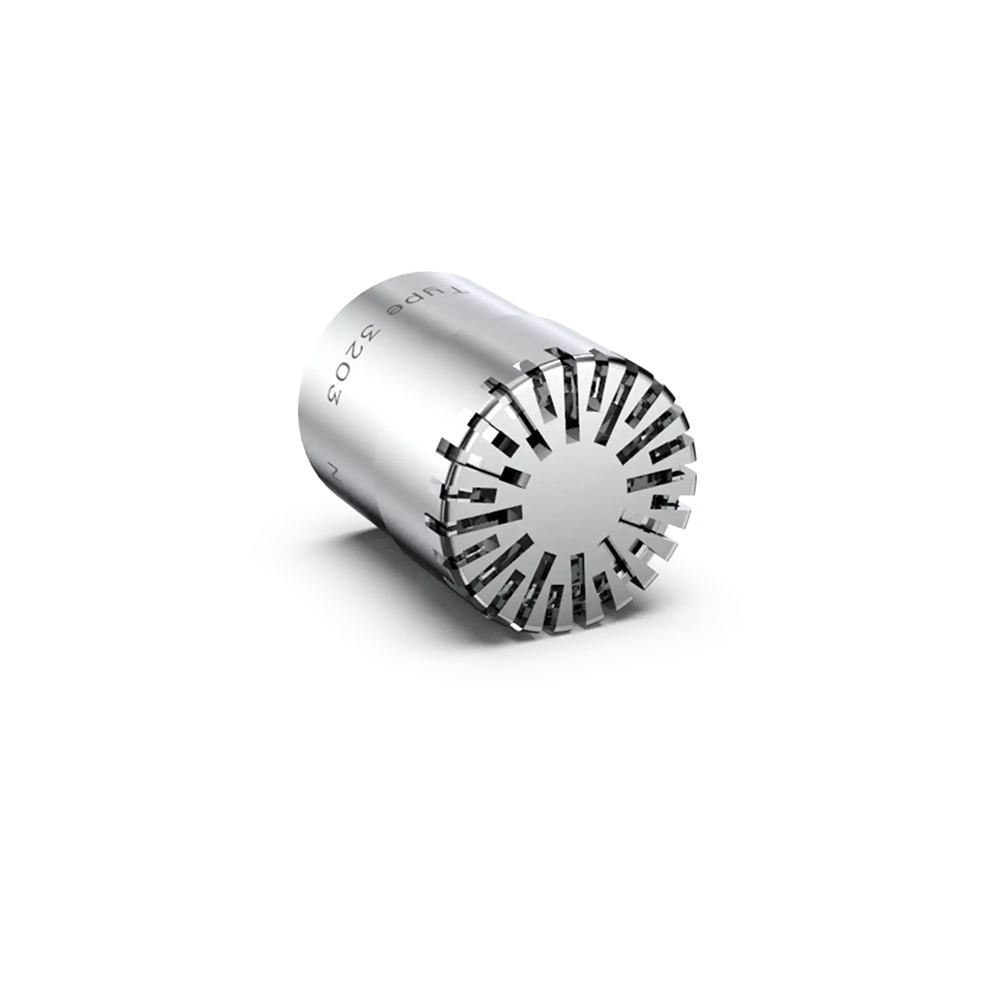

CRY3203 is a 1/2-inch free-field prepolarized measurement microphone widely used in acoustic testing environments, such as anechoic chambers and quiet rooms.
The unique design of CRY3203 allows it to have a frequency response range that matches the auditory frequency range of the human ear, making it highly suitable for noise detection. Additionally, it is also widely applicable in various fields including electroacoustic measurements, audio measurements, and acoustical research.
| Size | 1/2″ |
|---|---|
| Polarization | Prepolarized |
| Field Type | Free field |
| Frequency Response Range | 3.15Hz to 20kHz±2dB |
| Temperature Stability | 0.012dB/℃(-10 to +50℃) 0.007dB/℉(+14 to +122℉) |
| Operating Humidity Range | 0 to 90%RH no condensation |
| Pressure Equalization Vent | Rear vented |
| Height with Grid | 16.2mm (0.64") |
| Polarization Voltage | 0V |
| Operating Temperature | -30 to +80℃ (-22 to +176℉) |
| Static Pressure Stability | -0.01dB/kPa |
| Humidity Stability | < 0.1dB (0 to 90%RH no condensation) |
| IEC 61094-4 Type | WS2F |
| Diameter with Grid | 13.2mm (0.52") |
