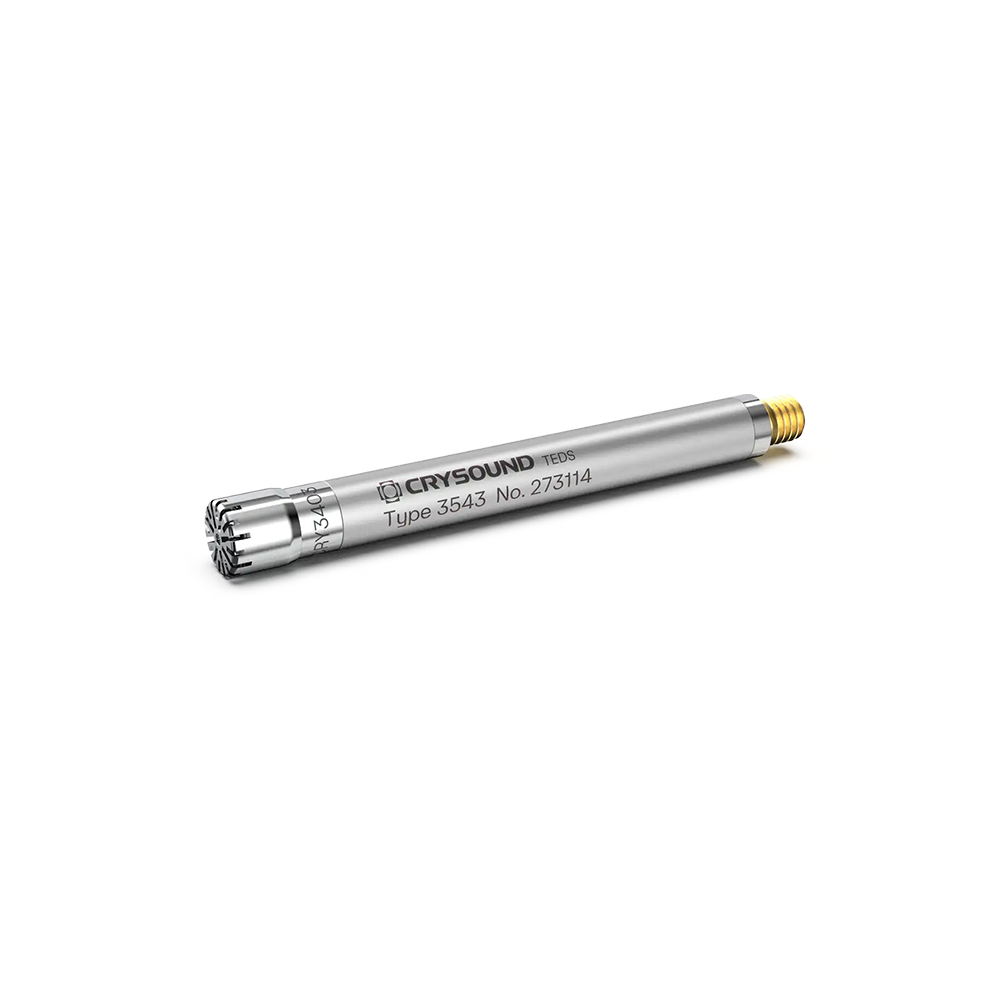

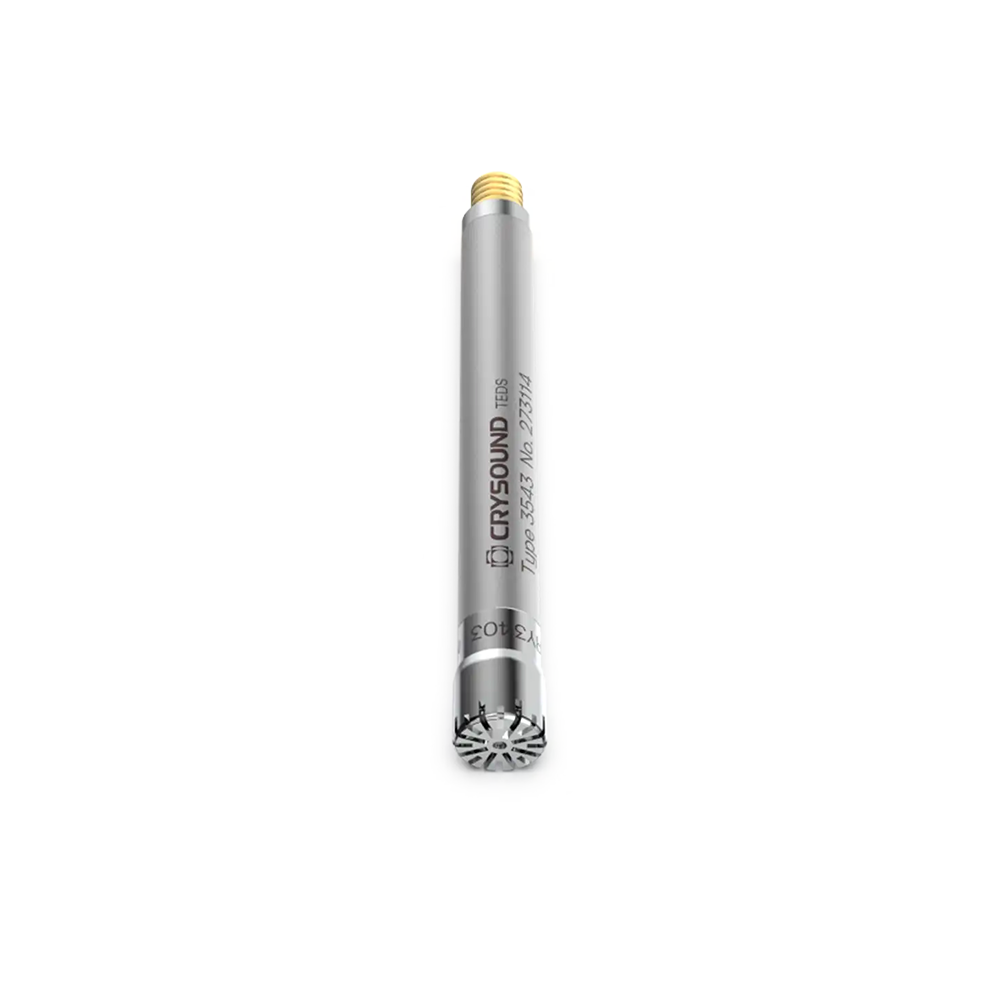

CRY3403-S02 is a 1/4-inch free-field prepolarized measurement microphone and preamplifier set designed for ultra-high-frequency and high dynamic range acoustic measurements.
The CRY3403-S02 is engineered with a unique design that ensures an exceptionally wide and flat frequency response, extending up to 90kHz, and can handle sound pressure levels up to 160dB. This microphone set is an excellent choice for general-purpose measurements, offering superior performance for high-definition audio analysis and a range of ultrasonic acoustic applications.
| Size | 1/4″ |
|---|---|
| Field Type | Free field |
| Polarization | Prepolarized |
| Frequency Response Range | 4Hz to 90kHz±2dB |
| Temperature Stability | 0.010dB/℃(-10 to +50℃) 0.006dB/℉(+14 to +122℉) |
| Operating Humidity Range | 0 to 90%RH no condensation |
| Pressure Equalization Vent | Side vented |
| Output Impedance | ＜50Ω |
| Power Supply | IEPE( 2 mA to 10mA ) |
| Connector Type | Microdot (M5/10-32UNF) |
| Polarization Voltage | 0V |
| Operating Temperature | -30 to +70℃ (-22 to +158℉) |
| Static Pressure Stability | -0.01dB/kPa |
| Humidity Stability | < 0.1dB (0 to 90%RH no condensation) |
| IEC 61094-4 Type | WS3F |
| Nominal Operating Current | 4 mA |
| Diameter with Grid | 7mm (0.276") |
| Height with Grid | 56.2 mm (2.213") |
