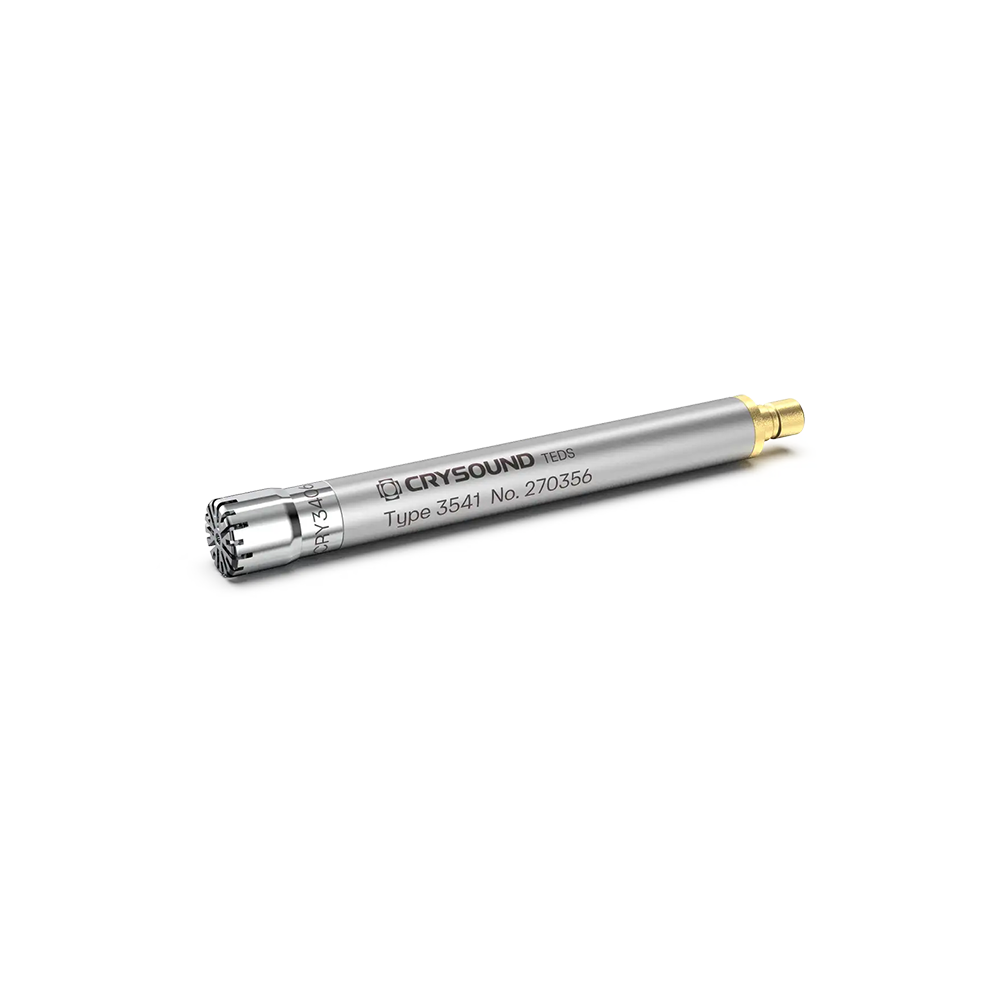

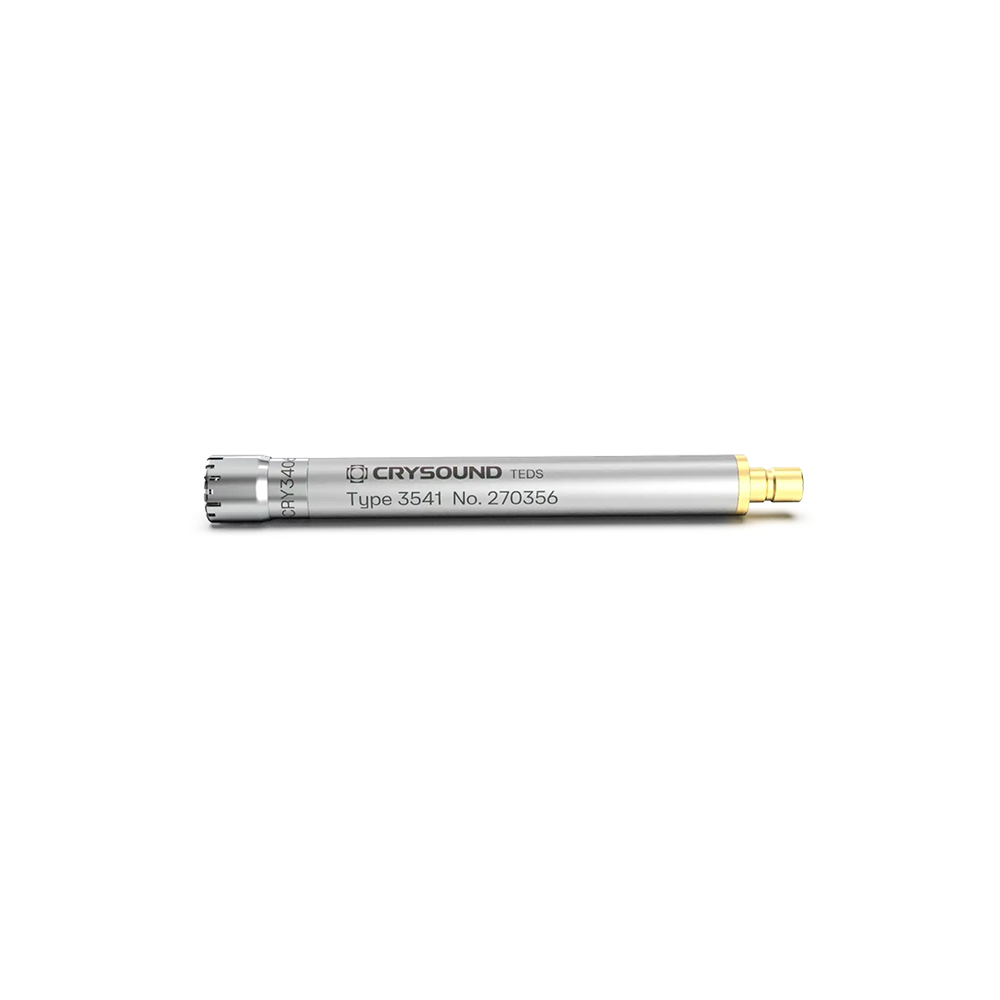

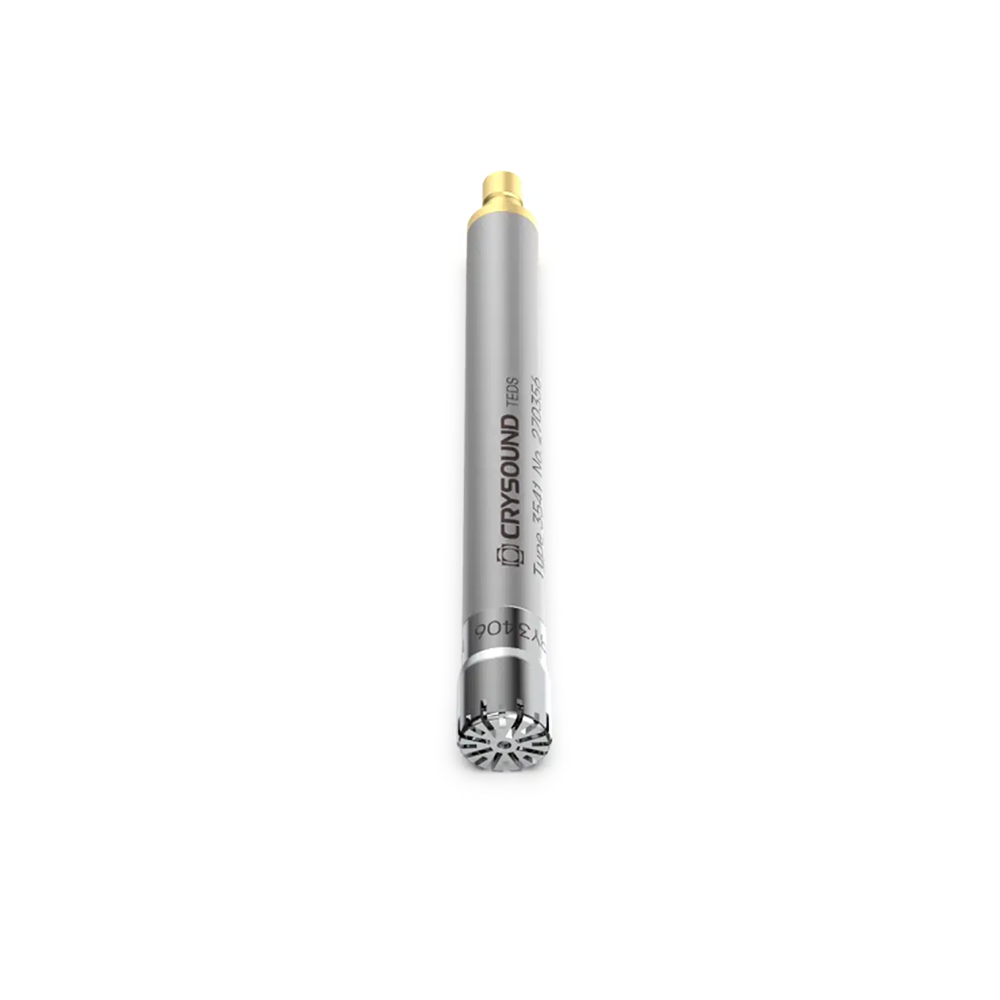

CRY3406-S01 is a 1/4-inch pressure-field prepolarized measurement microphone and preamplifier set designed specifically for sensitive acoustic testing in low-noise environments.
The CRY3406-S01 features a unique design that minimizes self-noise, ensuring clear and accurate readings. With its ability to handle sound pressure levels up to 148 dB, it is an exceptional general-purpose measurement microphone set, ideal for high-definition audio analysis and various acoustic applications.
| Size | 1/4″ |
|---|---|
| Field Type | Pressure field |
| Polarization | Prepolarized |
| Frequency Response Range | 4Hz to 20kHz±2dB |
| Temperature Stability | 0.010dB/℃(-10 to +50℃) 0.006dB/℉(+14 to +122℉) |
| Operating Humidity Range | 0 to 90%RH no condensation |
| Pressure Equalization Vent | Side vented |
| Height with Grid | 56.2 mm (2.213") |
| Polarization Voltage | 0V |
| Operating Temperature | -20 to +60℃ (-4 to +140℉) |
| Static Pressure Stability | -0.01dB/kPa |
| Humidity Stability | < 0.1dB (0 to 90%RH no condensation) |
| IEC 61094-4 Type | WS3P |
| Nominal Operating Current | 4 mA |
| Diameter with Grid | 7mm (0.276") |
