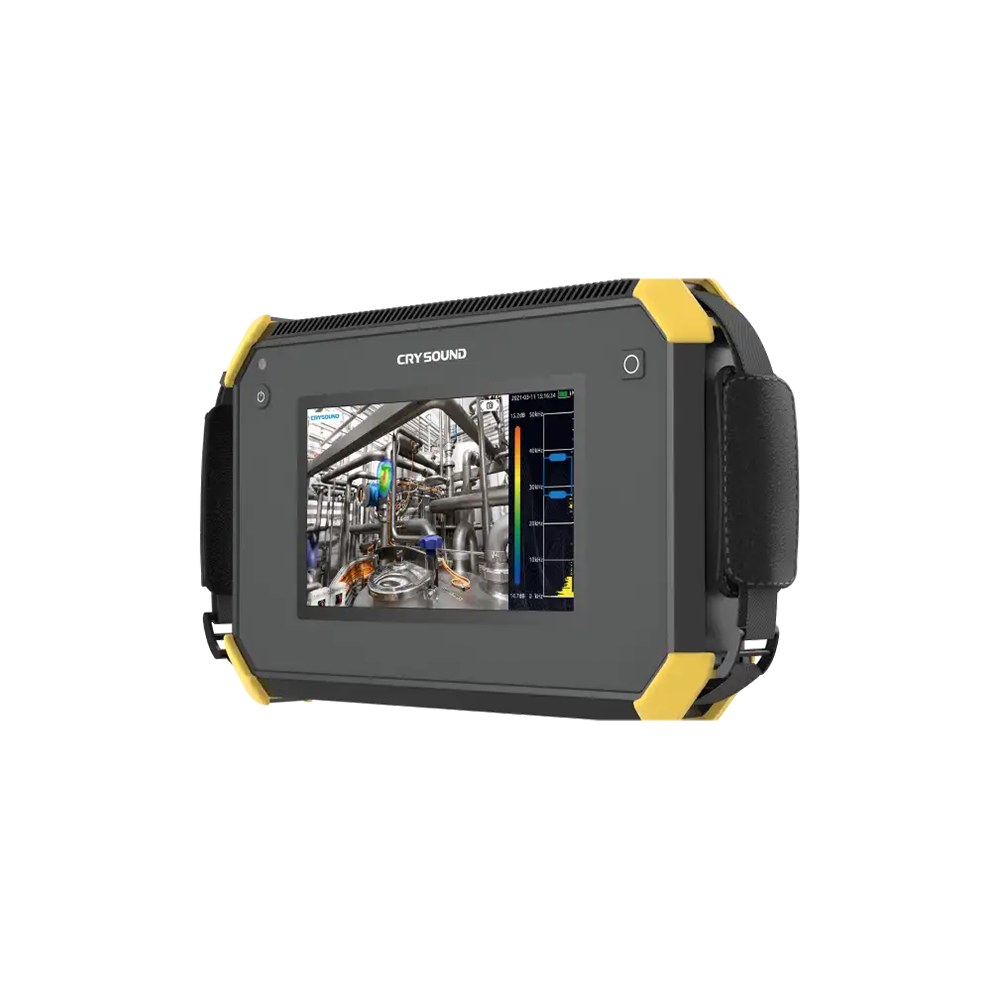

The CRY2623 is a 128-mic industrial acoustic imaging camera that is user-friendly and requires minimal training. Its durable aluminum alloy shell is built to withstand complex and variable working conditions. The device offers real-time acoustic imaging, significantly accelerating the detection of pressurized or vacuum leaks compared to traditional methods. It supports both photo and video modes for flexible on-site data recording. With an expandable, large-capacity TF storage card, test results can be quickly exported and reported.
The CRY2623 helps enterprises reduce safety risks and minimize economic losses associated with gas leaks, partial discharges, and other malfunctions.
| Application | Leak/vacuum detection, Partial discharge |
|---|---|
| Intrinsic safety | Non-intrinsic safety |

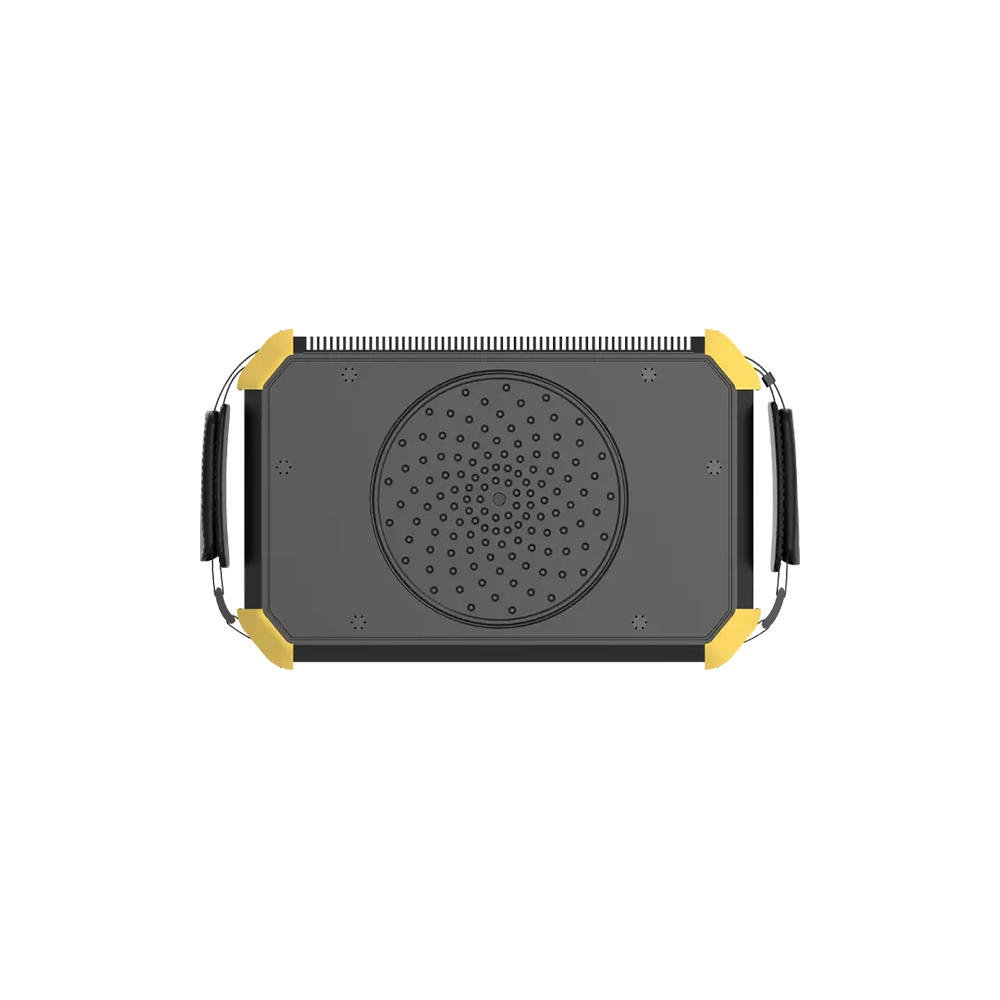

| Microphone Array | 128 channels MEMS microphone |
| Additional plugin | N/A |
| Dynamic Range(re.20uPa) | 0.5dB to 12dB, user adjustable |
| Auto max/min dB gain | User-settable, minimum test bandwidth 1kHz |
| Camera FOV | 62° |
| Screen size | 7inch |
| Minimum Detectable Leak | 10m 5bar 0.92ml/s, 0.5m 5bar 0.55ml/s |
| Camera Pixel | 8M pixel |
| Sound Pressure Levels (SPL) | 25.7 – 132.5dBA |
| Focal Length | 3.04 mm Fixed focal length |
| Resolution | 1024 × 600 (614,400 pixels) |
| Touchscreen | Capacitive touchscreen |
| Storage | 8G internal, MicroSD card, at least 64G, expandable to 256G |
| Video Length | 5 minutes |
| Battery Capacity | 6600mAh @ 7.2V, External battery package, continuous |
| Battery Life | 4+6 hours operation time |
| Charger | USB Type-C port, USB PD protocol supported, 15W |
| Energy management | Sleep/Auto power off modes |
| Storage Temperature | -20 °C to +60 °C (-4 °F to 140 °F) |
| Level of Protection | IP54 |
| Self-diagnostic notification | Array-health test function to identify when microphone array needs attention |
| Certification | CE, FCC, RoHS-compliant |
| Report | Gas/Electricity/ISO 50001-compliant |
| Interface | 3.5 mm – Audio Jack Headphone output, USB 3.0 Type-C USB host port |
| Weight | 1.7kg |
| Number of digits | 16bit |
| Sound image frame rate | At least 25 FPS |
| Test Distance | 0.3m – 120m |
| Photo notes | Up to 5 photos notes for reference |
| Standard palettes | Blue-Red, Grayscale, Ironbow |
| Data Format | .jpg (picture), .mp4 (video), .wav (audio) |
| Data Export | microSD card |
| Power consumption | 15W for battery charge, 29W for maximum power consumption |
| Operating Temperature | -20 to +50 ℃, 10 to 95 %，no cond. |
| Charging temperature | 10℃ to +45℃ |
| Size | 272mm × 174mm × 42mm |
| Warranty | 2 years |
| Supported operation system | Linux |
| Language | Cambodian, Chinese, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Vietnamese |
| Analysis | Discharge type discrimination, Leakage assessment, Spectrogram, Spectrum, Waveform |
