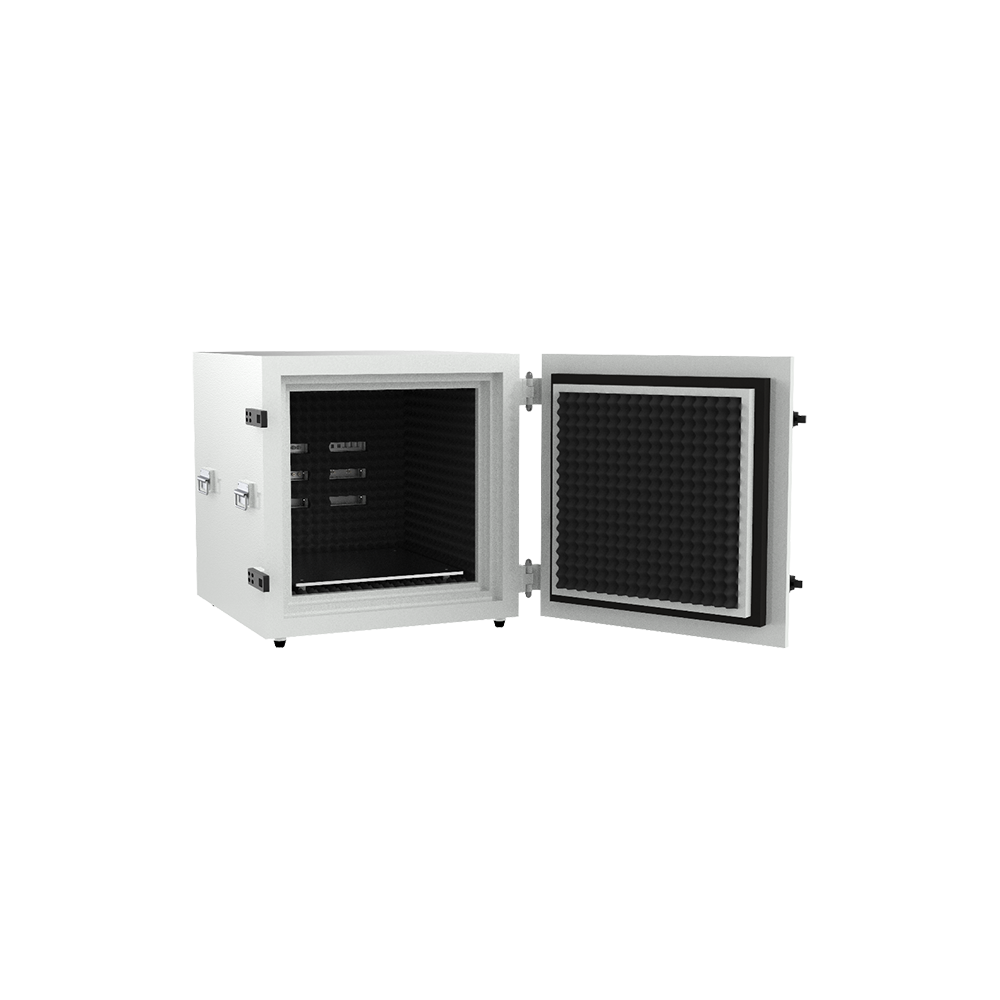

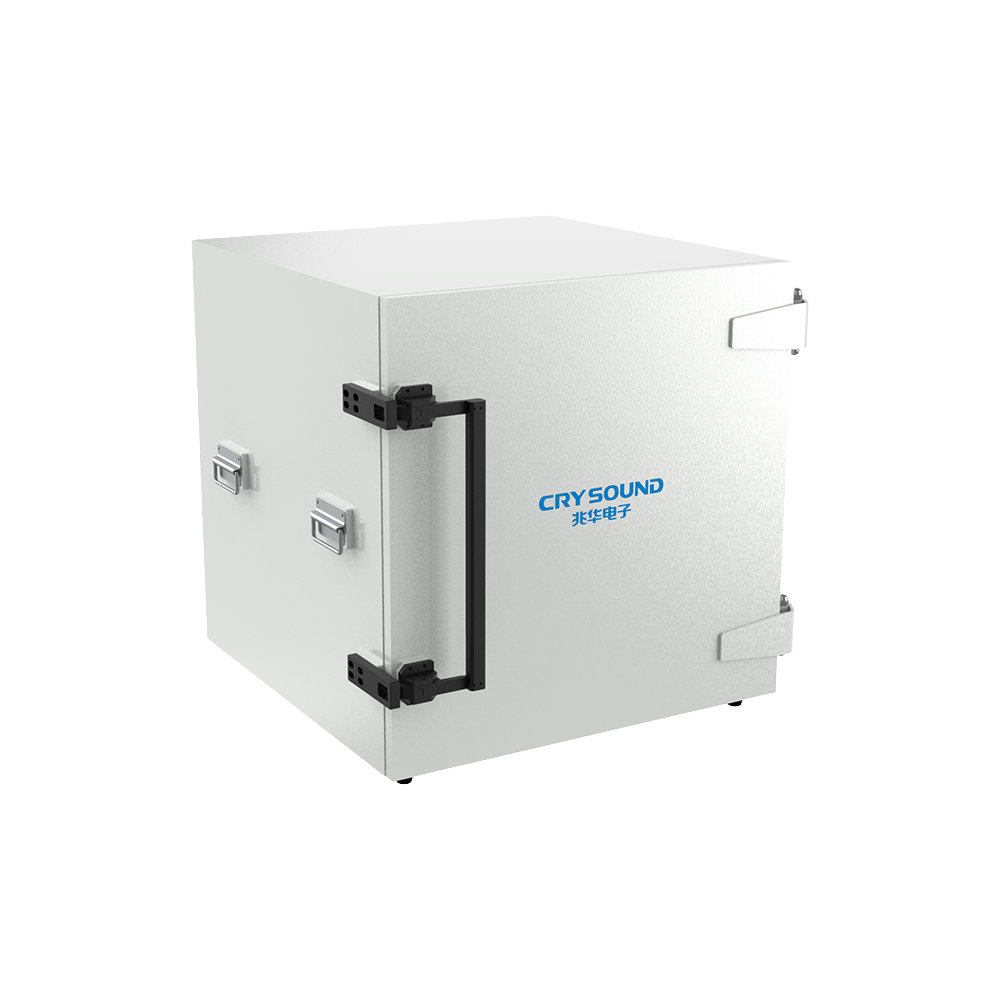

The CRY7413 Acoustic Chamber provides a quiet environment in a compact space, offering the benefits of a full-scale acoustic test chamber with greater ease and efficiency. Its user-friendly design allows for quick and simple exchange of the Device Under Test (DUT), minimizing physical strain on the operator.
The chamber includes a marked and adjustable test jig, accommodating various DUT sizes and facilitating consistent test setups across multiple chambers.
Standard configuration includes all necessary accessories for immediate audio response testing, while a range of optional features allows for customization to suit your specific testing needs.
| Case Type | Side opening |
|---|---|
| Operation | Manual |
| Feature | Common |
| Outer color | Beige |
| Size | 820(L)*780(W)*730(H)mm |
| Sound-absorbing material | 40 mm Foam |
| Sound Isolation Performance | 100 Hz~300 Hz>20 dB, 300 Hz~600 Hz>25 dB, 600 Hz~1000 Hz>30 dB, Above 1000 Hz>40 dB |
| Power Supply | DC*2 1A, USB*6 0.5A |

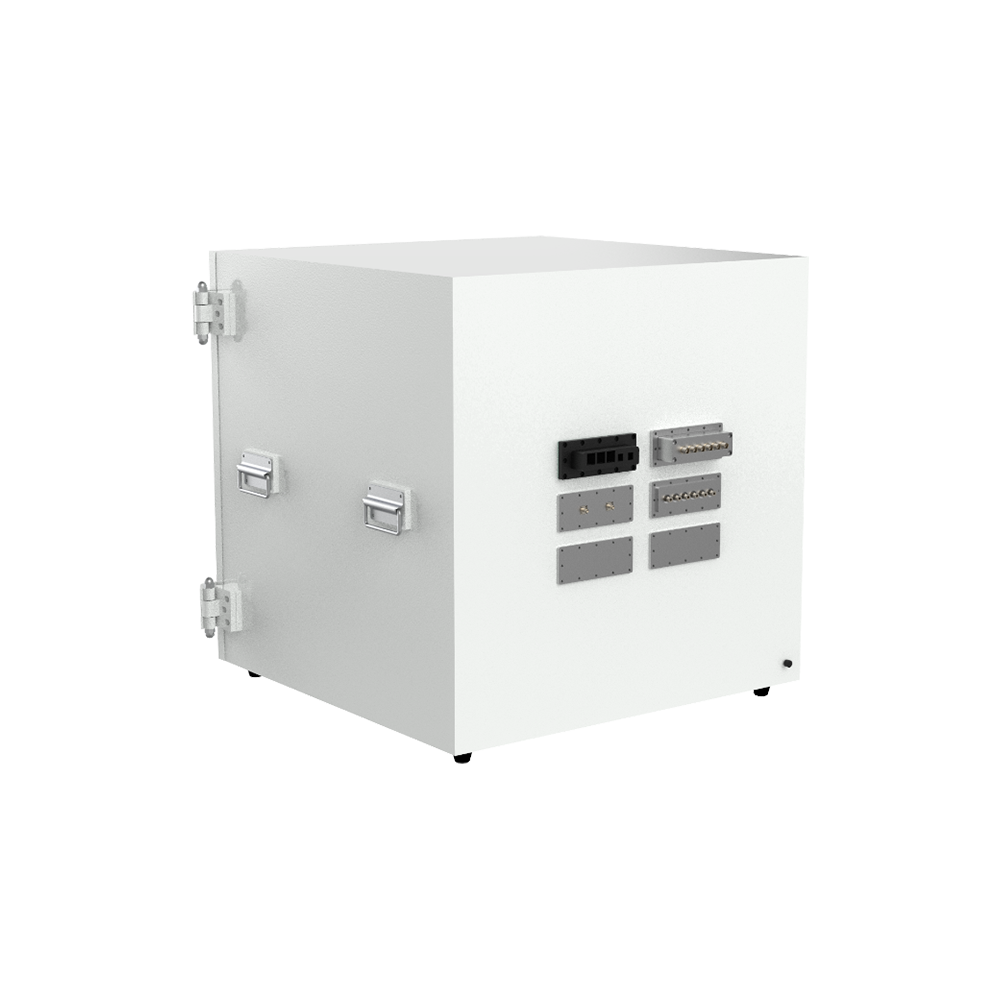

| Output interface | BNC*6, 100 pF capacitor |
| Case Material | Sheet metal |
| Inner size | 500(L)*500(W)*500(H)mm |
| RF Shielding Performance | 0.8 ~ 6 GHz >50 dB |
| Noise floor | <40 dBA, while external nosie <80 dBA (No impact, strong vibration) |
| SMA | 700 MHz~6 GHz, standing, wave ratio<1.5, insertion, loss<0.5 dB |
| Air Pipe | Airpipe interface*6 |
