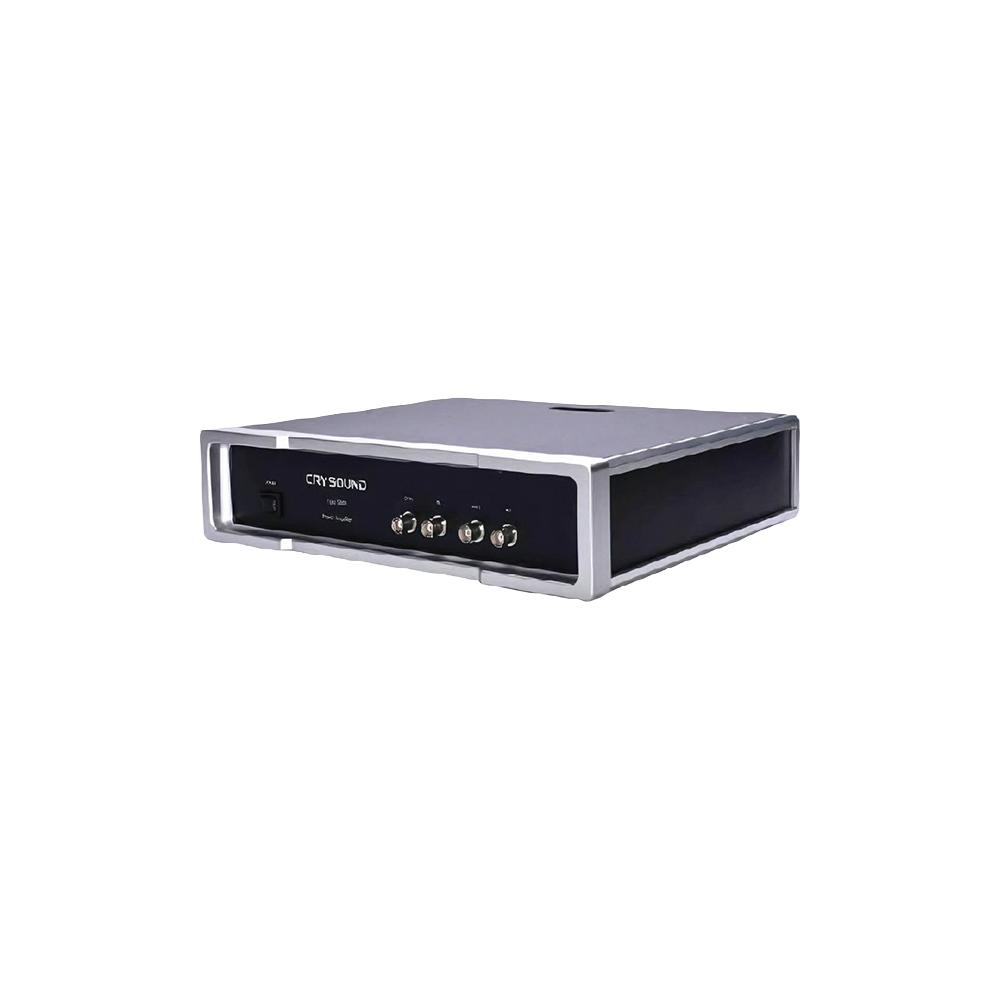

The CRY584D is tailored for both laboratory and production line testing, featuring a 2-channel power amplifier.
Its power supply unit powers microphones, ear simulators, and other components. The power amplifier drives speakers, headphones, mouth simulators, and various other devices. Integrated into the chassis, the two-channel power amplifier allows for simultaneous connection to multiple devices under test, ensuring no mutual interference.
| Quantity of Channels | 2 |
|---|---|
| Output Power | 30W*2 (load 1.5Ω) |
| THD+N | 20～20kHz (<0.01%) |
| Gain | 20dB |
| Output interface | BNC |
| Frequency Response Range | 10 to 20kHz (±0.5dB), 50 to 10kHz (±0.2dB) |
| Noise floor | <-85dBV |
Need help choosing the right configuration?
Send us your product inquiry and we’ll help you select the right setup.
CRY584D
