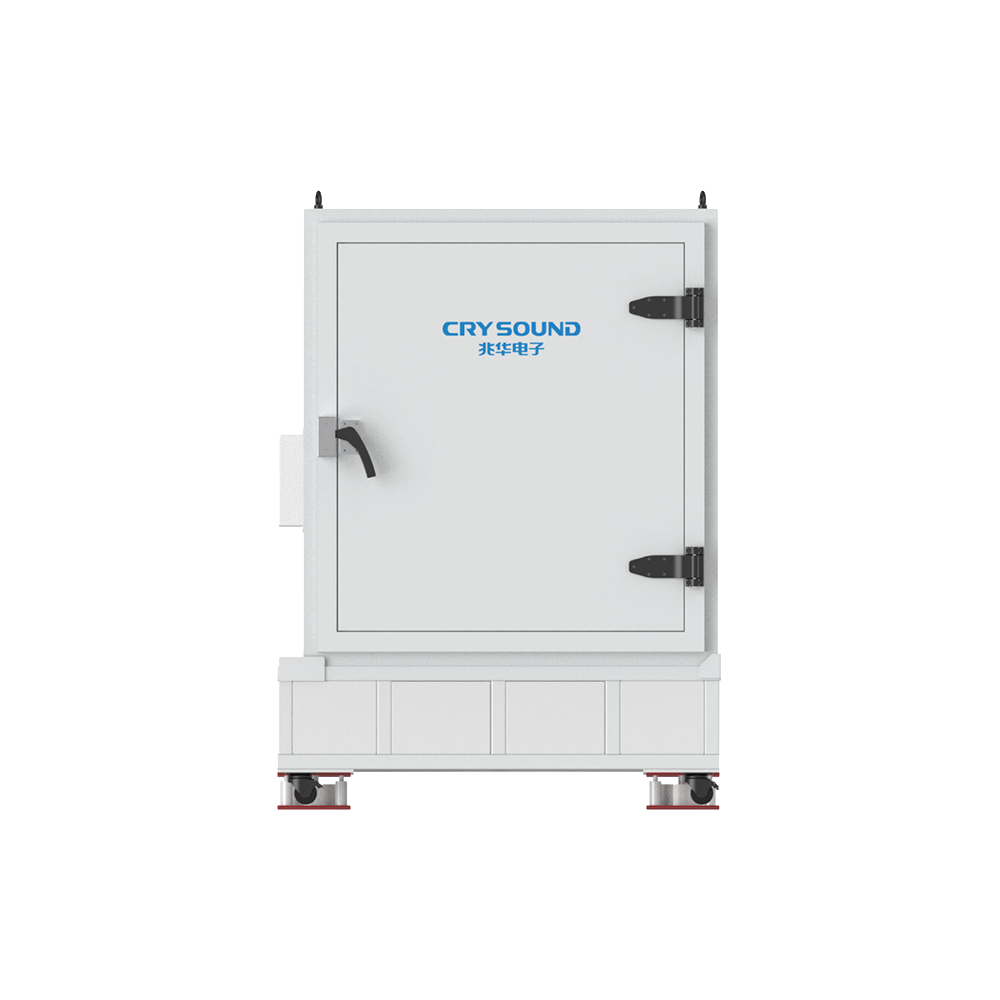

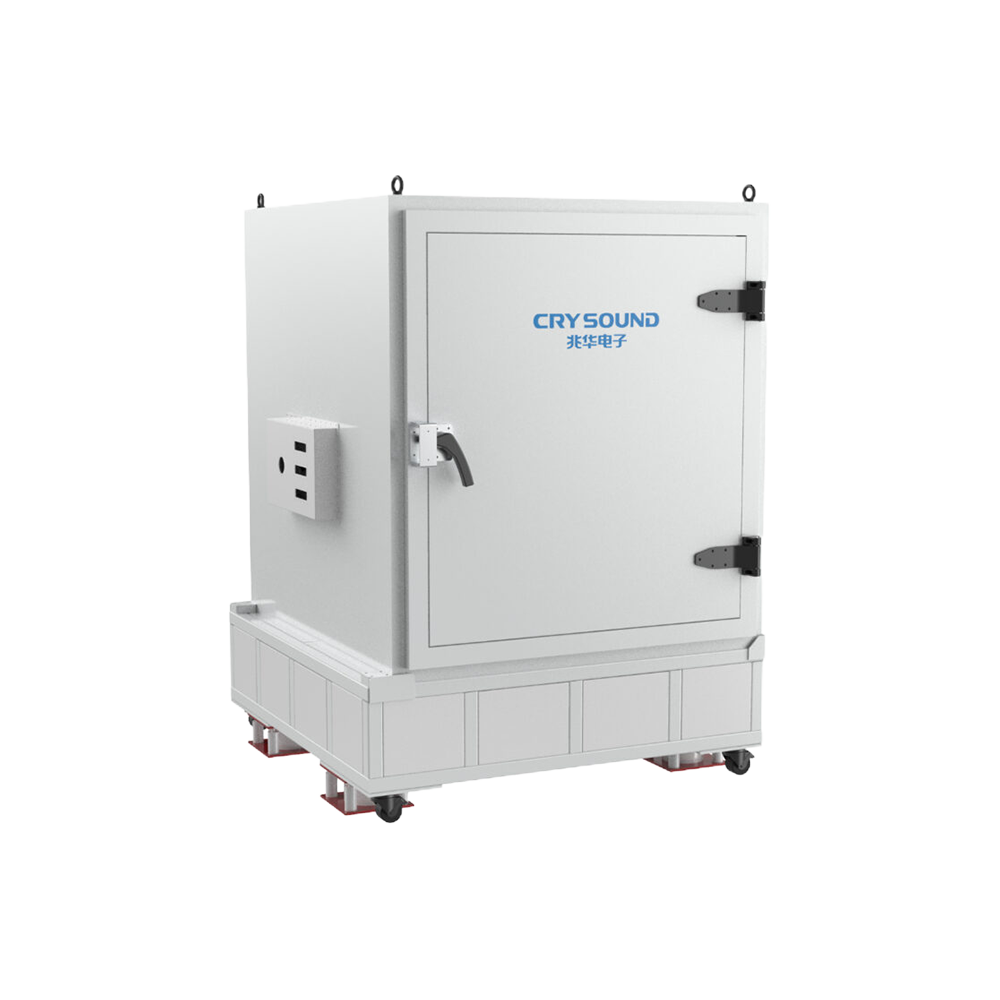

The CRY7412 is a manual ultra-quiet chamber designed for testing very quiet sounds while in a noisy environment. It is primarily used for audio and noise assessments of wireless electronic devices, both on production lines and in laboratories.

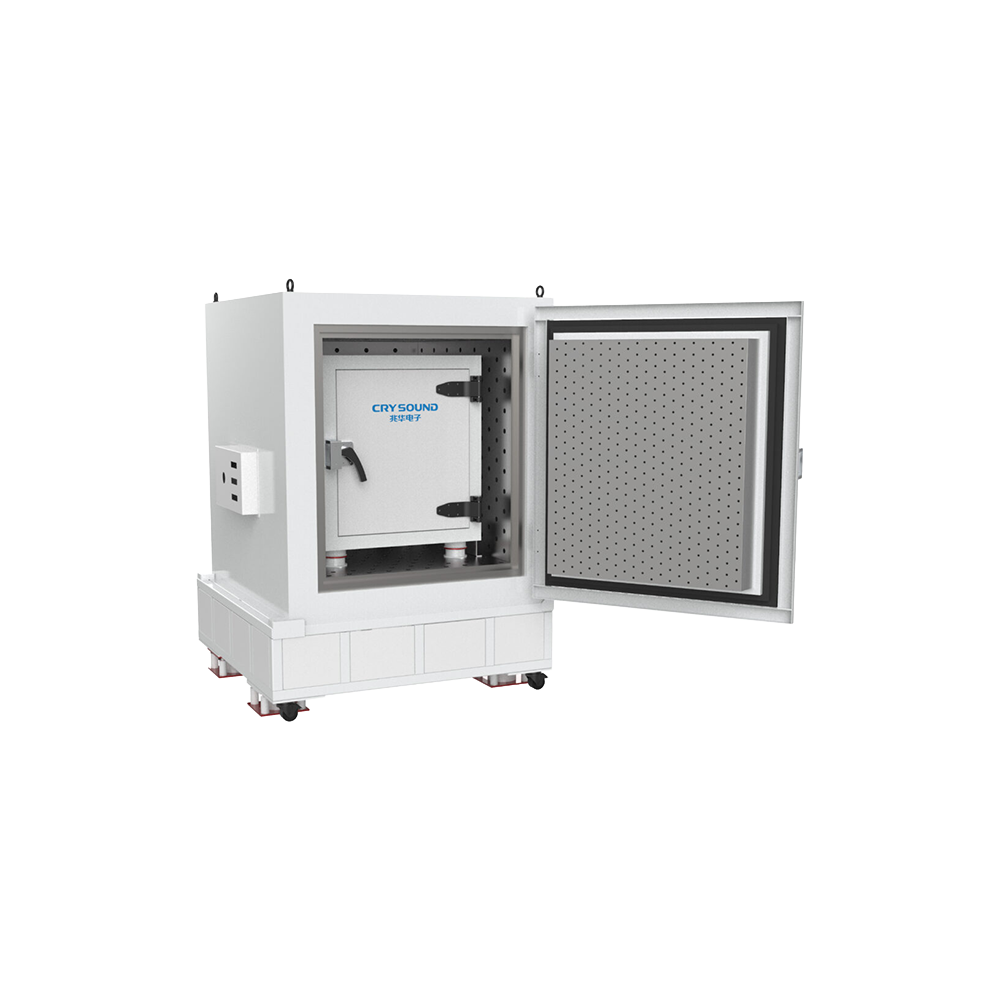

Featuring a unique design, the chamber consists of a smaller box embedded within a larger one, allowing for lateral opening in two stages. This innovative design enhances soundproofing and minimizes external noise interference, providing a controlled environment for accurate testing.
| Case Type | Side opening |
|---|---|
| Operation | Manual |
| Feature | Low Noise |
| Outer color | Porcelain white |
| Size | 1498(L)*1554(W)*1556(H)mm |
| Sound Isolation Performance | 100 ～ 20000Hz>70dB (1/3 octave) |
| Power Supply | AC 100-220V, 50/60Hz |
| Pneumatic pressure | >5kg/cm2 |
| Weight | About 1.7ton |
| Inner size | 440(L)*500(W)*540(H)mm |
| Rated power | 15W |
| RF Shielding Performance | 1 ~ 6GHz >70dB (Without I/O interface) |
| Noise floor | 6.5dBA (ambient noise ≤70dBA), No shock and vibration |
