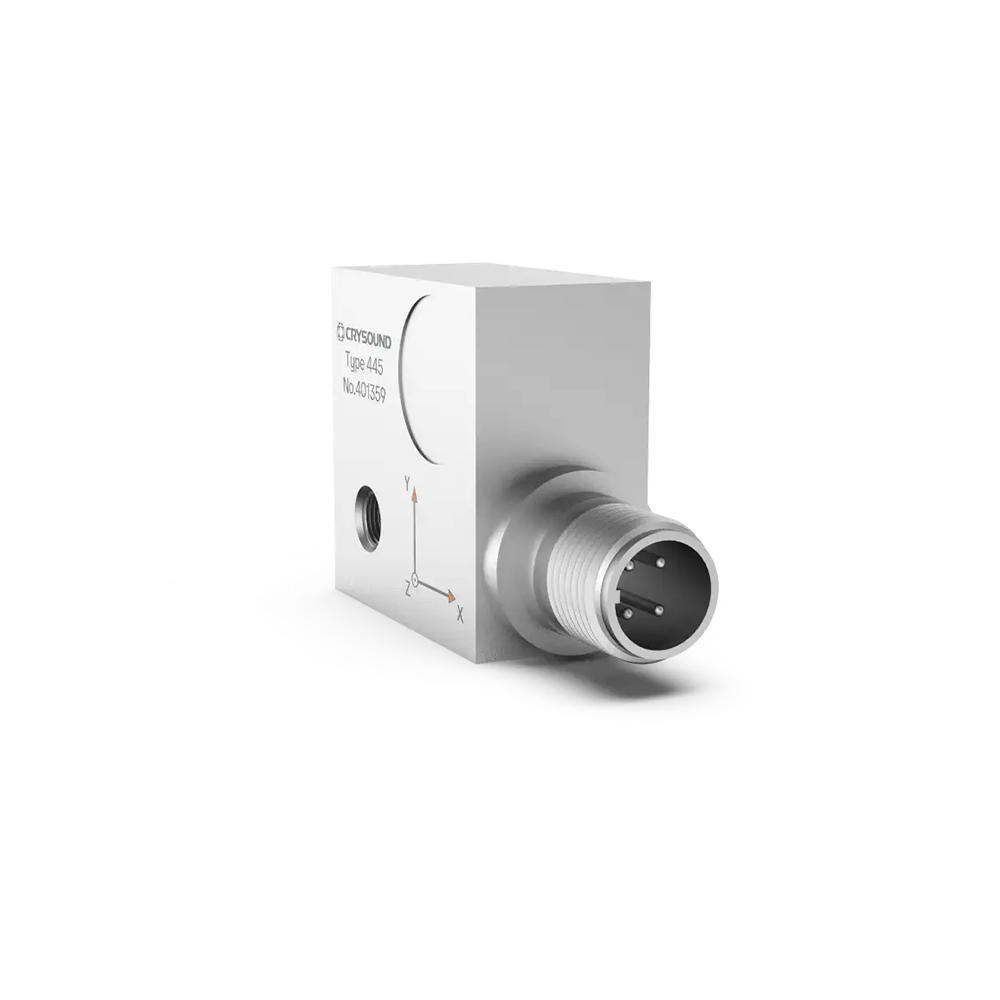

The CRY445 is a triaxial acceleration sensor with a side-end M12*1 (4-pin) output that is mounted on an object via a 10-32 UNF stud. It is often used for on-line monitoring of vibration state of industrial equipment.
CRY445 can be equipped with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as industrial and electric power.
| Output | IEPE |
|---|---|
| Sensitivity (25℃) | 100mV/g(160Hz) |
| Axis | Triaxial |
| Measuring Range (peak) | ±80g pk |
| Frequency Response Range | 0.5Hz to 8kHz(±3dB), 1Hz to 4kHz(±1dB); |
| Output Impedance | <100Ω |
| Full Scale Output (peak) | ±8V |
| Background Noise | ＜200μV |
| Bias Voltage | 10V to 14V |
| Install Ground Insulation | ≥10^8Ω |
| Maximum Shock Level | ±1,000g |
| Operating Temperature | -40℃ to 120℃(-40℉ to 248℉ ) |
| Connector Type | Side M12*1 (4-pin) |
| Construction | Shear |
| Piezoelectric Materials | PZT-5 |
| Threaded Interface | M5 |
| Transverse Sensitivity | ≤5% |
| Excitation Voltage | 18VDC to 28VDC (Constant Current Source) |
| Constant Current Source | 2mA to 10mA |
| Case Material | 304 Stainless Steel |
| Weight | 95g |
