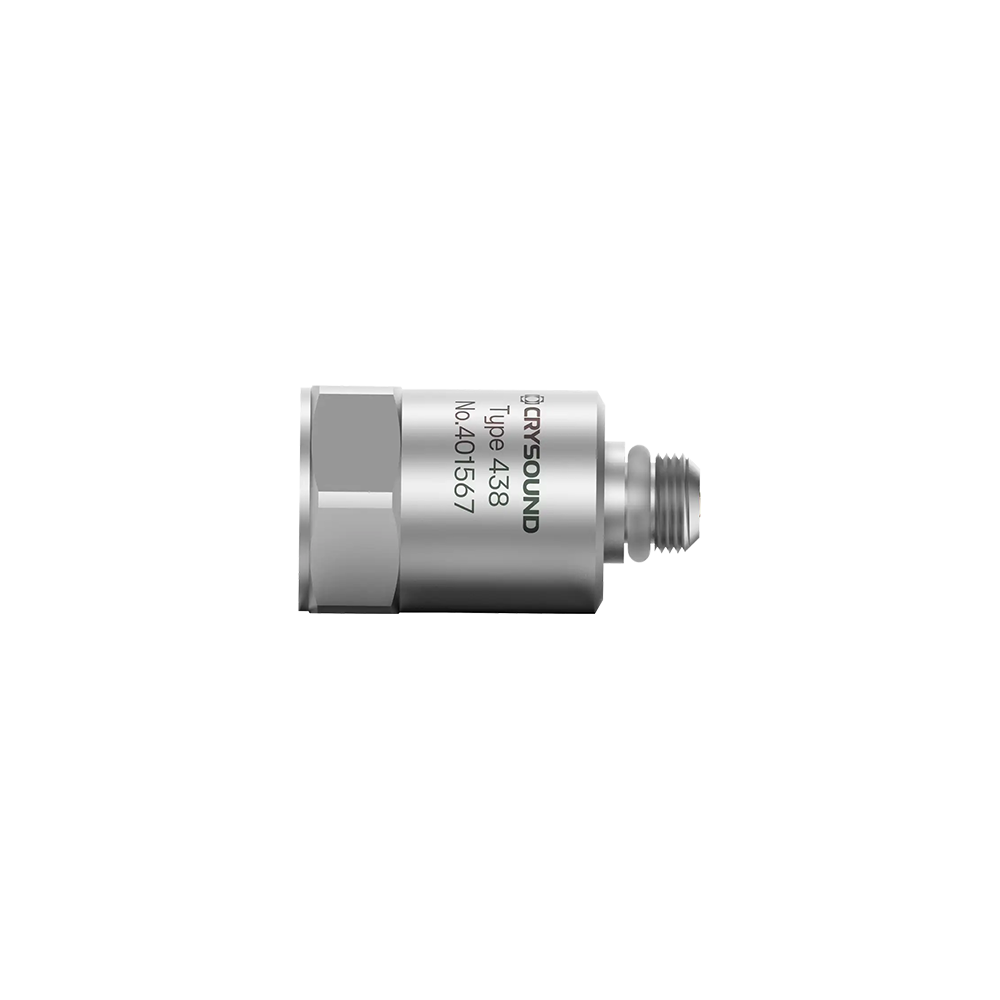

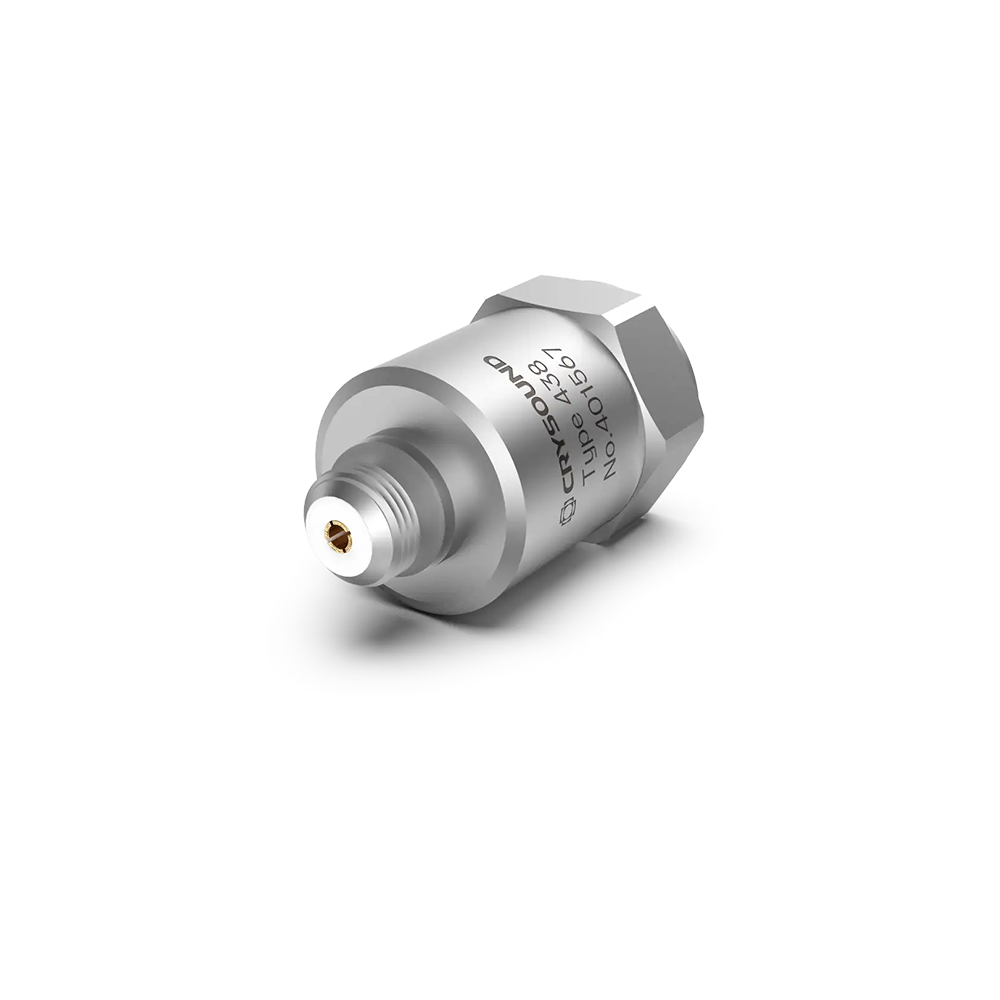

The CRY438 is a single-axis acceleration sensor with an output mode of 10-32 UNF at the top, which is mounted to an object via a 10-32 UNF bolt. It can be used to measure small movements in laboratory and scientific research, and can also be used to monitor the vibration state of industrial equipment online.
CRY438 can be equipped with armored shielded cables to measure vibration parameters such as acceleration, velocity, and displacement under strong interference conditions such as industrial and electric power.
| Output | IEPE |
|---|---|
| Sensitivity (25℃) | 10mV/g(160Hz) |
| Axis | Uniaxial |
| Measuring Range (peak) | ±500g pk |
| Frequency Response Range | 0.6Hz to 20KHz(±3dB), 1Hz to 10kHz(±1dB) |
| Output Impedance | <100Ω |
| Full Scale Output (peak) | ±5V |
| Noise | ＜50uV |
| Connector Type | Top M5 |
| Construction | Shear |
| Piezoelectric Materials | PZT-5 |
| Transverse Sensitivity | ≤5% |
| Excitation Voltage | 18VDC to 28VDC (Constant Current Source) |
| Constant Current Source | 2mA to 10mA |
| Bias Voltage | 19V to 12V |
| Operating Temperature | -40℃ to 120℃(-40℉ to 248℉ ) |
| Case Material | 304 Stainless Steel |
| Weight | 9.5g |
