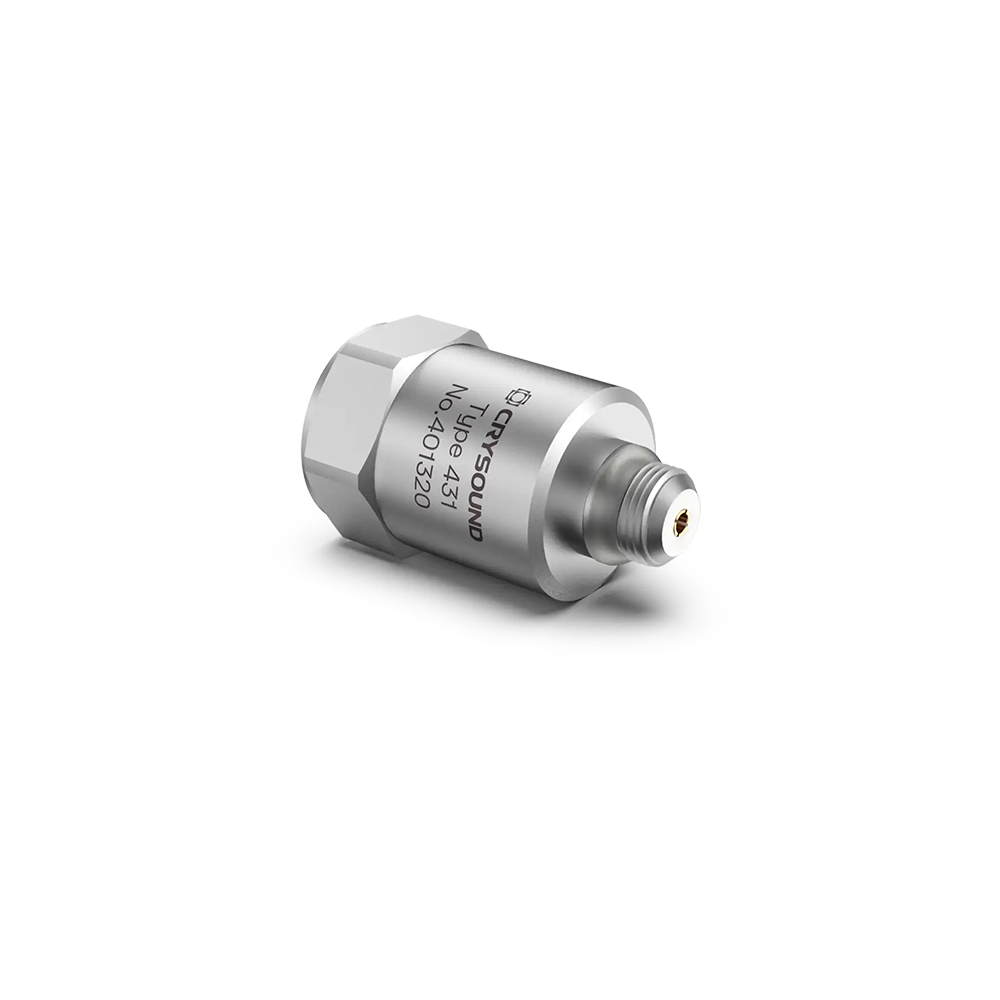

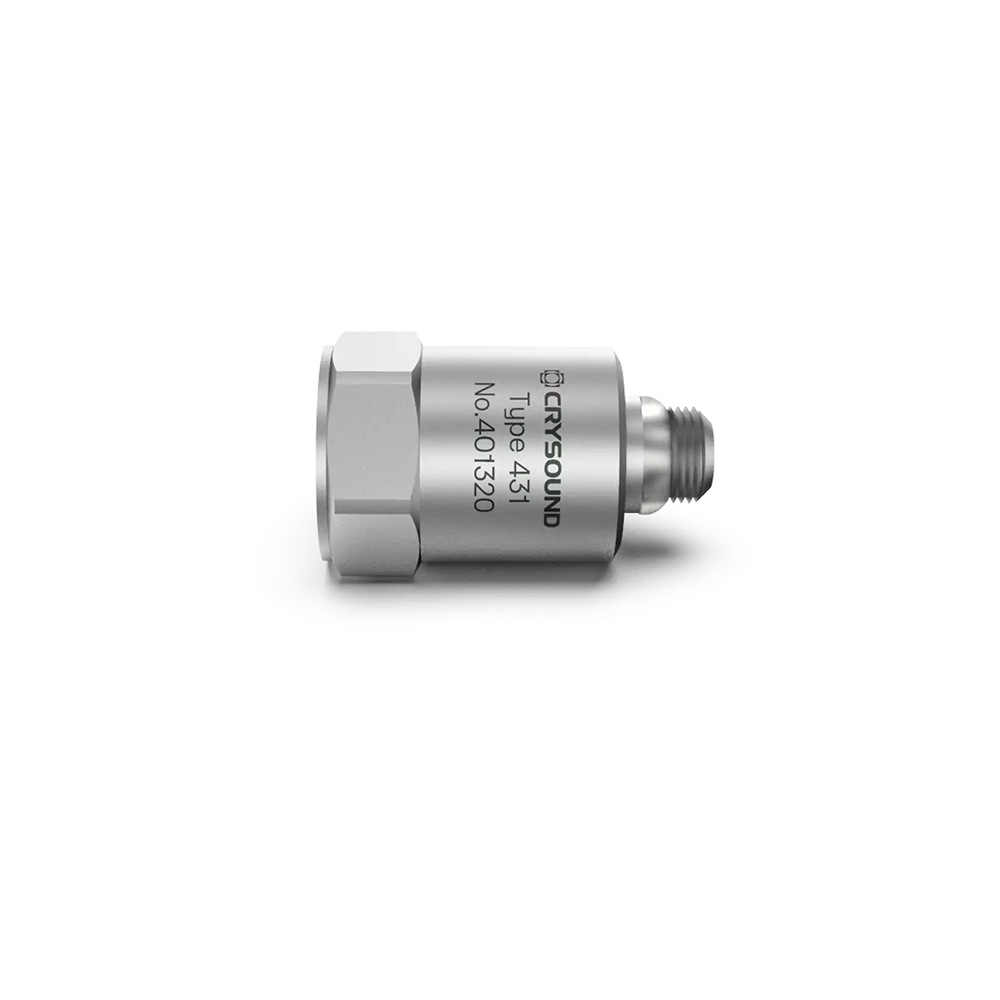

The CRY431 is a precision single-axis acceleration sensor designed for versatile applications. Featuring a 10-32 UNF output mode at the top, it mounts securely to objects using a 10-32 UNF bolt. Ideal for measuring small movements in laboratory and scientific research, the CRY431 is also suitable for real-time vibration monitoring of industrial equipment.
The device can be paired with armored shielded cables to accurately measure vibration parameters such as acceleration, velocity, and displacement, even in challenging environments with significant industrial or electrical interference.
| Output | IEPE |
|---|---|
| Sensitivity (25℃) | 5mV/g (160Hz) |
| Axis | Uniaxial |
| Measuring Range (peak) | ±1000g |
| Frequency Response Range | 1Hz to 12kHz(±1dB) |
| Output Impedance | <100Ω |
| Full Scale Output (peak) | ±5V |
| Noise | ＜50uV |
| Maximum Shock Level | ±5000g |
| Connector Type | Top M5 |
| Construction | Shear |
| Piezoelectric Materials | PZT-5 |
| Transverse Sensitivity | ≤5% |
| Excitation Voltage | 18VDC to 28VDC (Constant Current Source) |
| Constant Current Source | 2mA to 10mA |
| Bias Voltage | ＜9V to 12V |
| Operating Temperature | -40℃ to 120℃(-40℉ to 248℉ ) |
| Threaded Interface | M5 |
| Case Material | 304 Stainless Steel |
| Weight | 9.5g |
