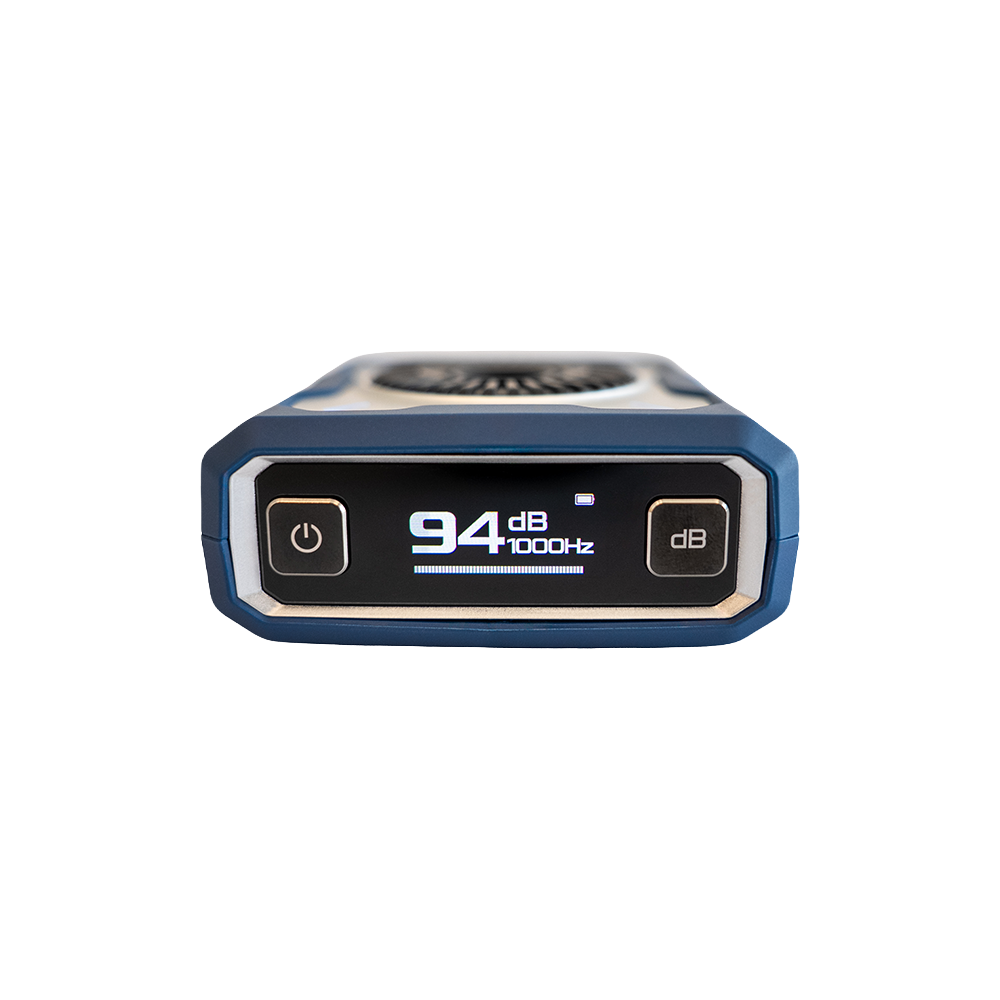

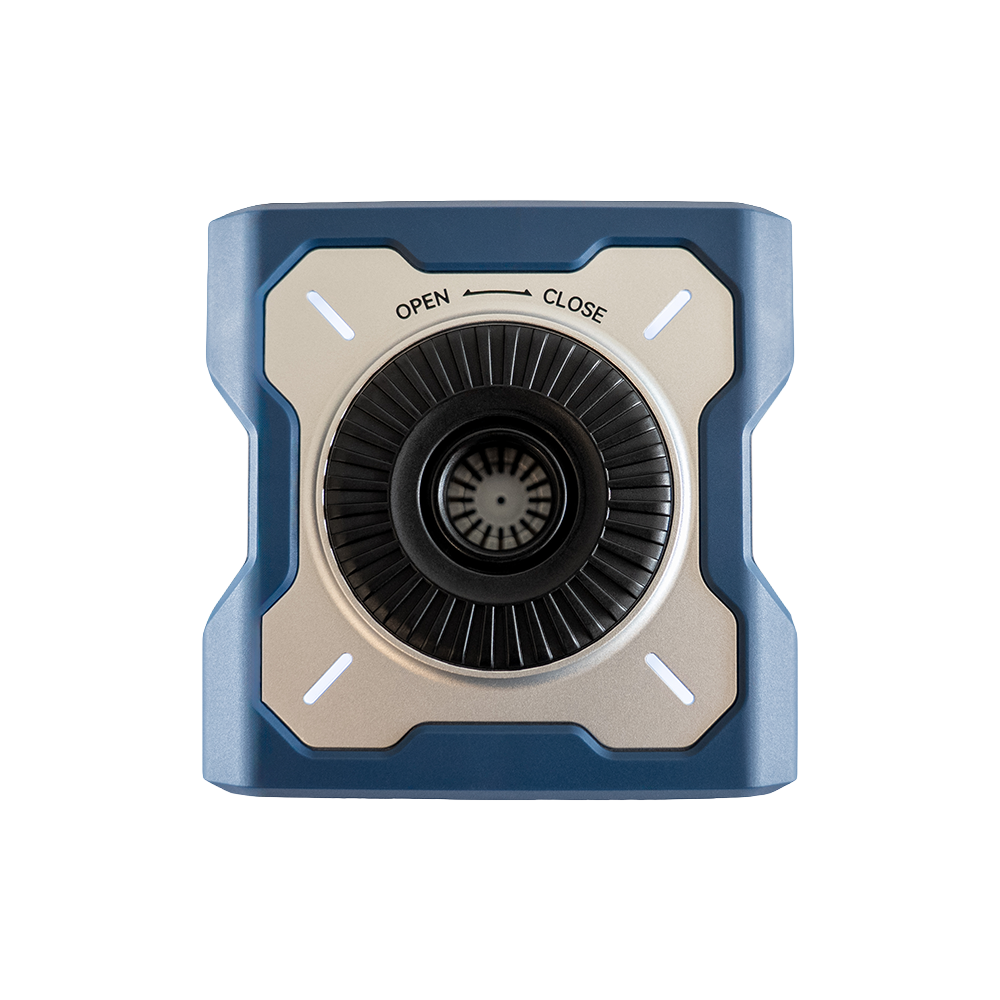

The CRY3016 is a portable Class 1 acoustic calibrator designed for high-precision calibration and verification of sound level meters, measurement microphones, and acoustic measurement chains in both field and laboratory environments. It supports one calibration frequency, 1000 Hz, and provides two selectable sound pressure levels, 94 dB and 114 dB. In high ambient noise conditions, the higher output level can be used to reduce the influence of background noise. Equipped with an integrated sound pressure feedback loop and real-time compensation for temperature, humidity, and barometric pressure, the CRY3018 effectively minimizes drift caused by environmental changes, ensuring stable output and reliable calibration performance under a wide range of operating conditions. When paired with the supplied 1/4-inch adapter (included with the CRY 3016), the calibrator enables accurate periodic calibration verification and sensitivity checks of the Race Patrol Lite measurement unit.
Optional:
| Frequencies | 1000 Hz |
|---|---|
| Sound Pressure Levels (SPL) | 94 dB / 114 dB |
| Short-term Level Variation | < 0.05 dB |
| Supported Microphones | 1" (1/2", 1/4" and 1/8" with adaptor) |
| Operating Pressure | 65 kPa ~ 108 kPa |
| Storage Temperature | -20 °C to +60 °C (-4 °F to 140 °F) |
| Compliance Standard | IEC 60942:2017 Class 1 |
| Frequency Accuracy | < 0.5 Hz |
| SPL Accuracy | < 0.2 dB |
| THD+N | < 1% |
| Operating Temperature | -10 to +50 °C (14 to 122 °F) |
| Operating Humidity Range | 0 to 90%RH no condensation |
| Power Supply | Built-in Lithium Battery, USB-C (5V, 1A) |
| Dimension | 75mm×75mm×30mm |
625,00 €
Need help choosing the right configuration?
Send us your product inquiry and we’ll help you select the right setup.
CRY3016
