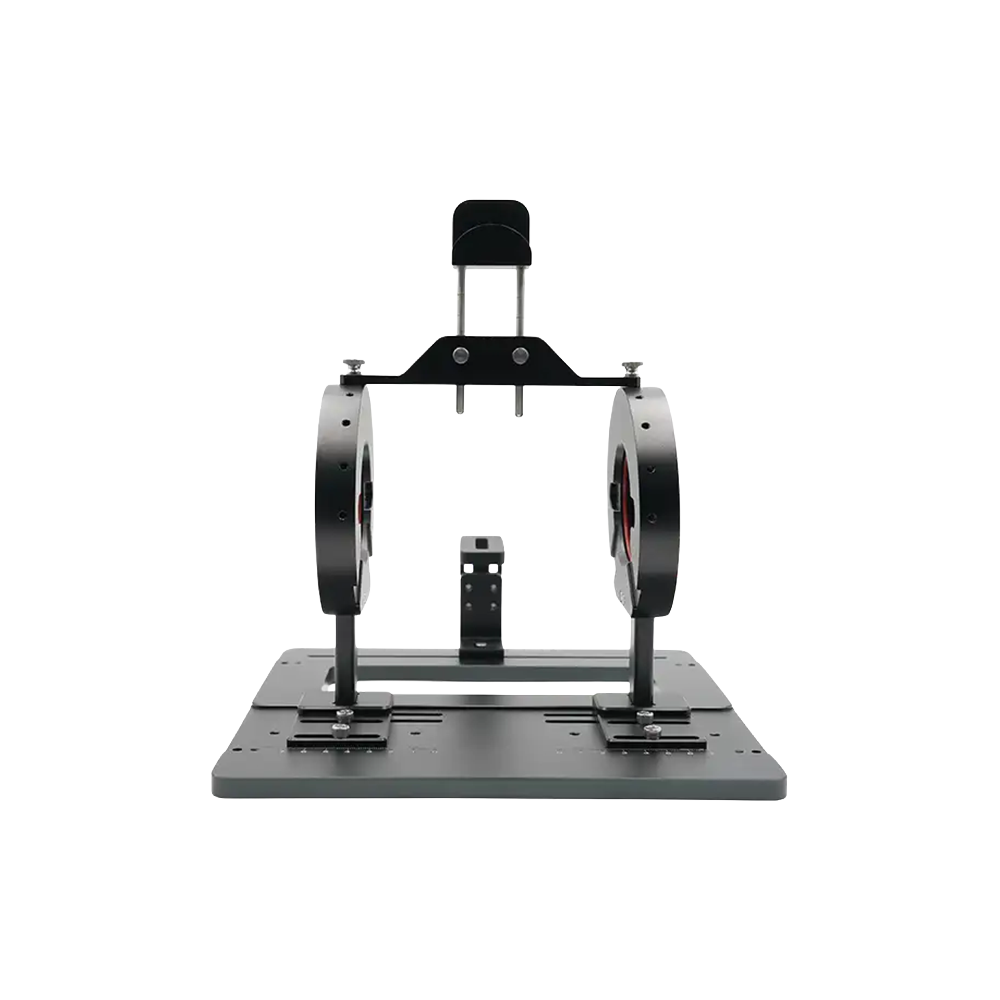

The CRY801B Headphone Test Fixture is designed for testing over-ear headphones, hearing protection devices such as earmuffs and earplugs. Constructed from robust oxidized and blackened aluminum, it is mounted on a resilient base that minimizes the noise floor during testing. Foam plugs are incorporated to prevent sound leakage along the cables.
The fixture can be configured with the CRY711 and CRY318 Ear Simulators for headphone testing. Its user-friendly assembly and compatibility with a mouth simulator make it an ideal choice for production line testing of over-ear headphones.
| Weight | 2.6kg |
|---|---|
| Primary Materials | Oxidized and blackened aluminum |
| Height | 260mm |
| Width | Max. 260mm |
| Horizontal adjustment range | 80mm-180mm |
| Vertical adjustment range | 0-50mm |
