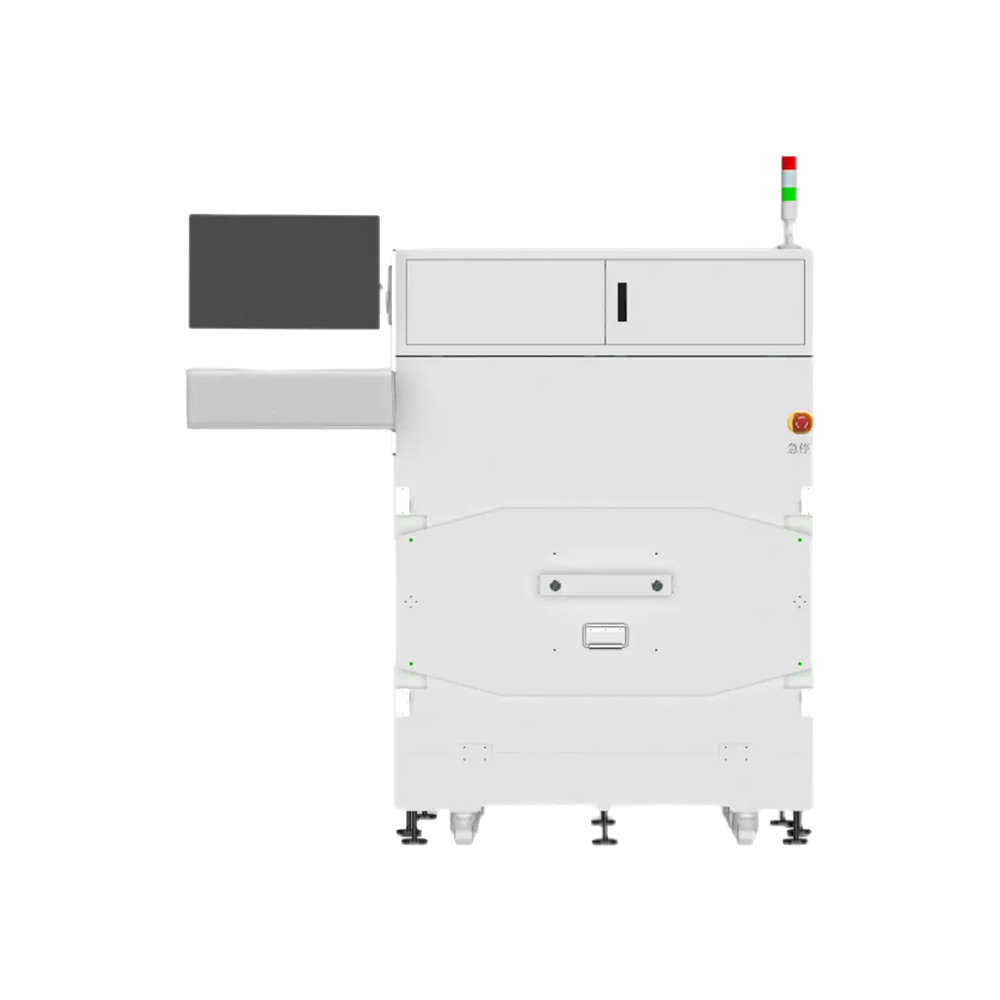

The CRY7865 is a high-performance, drawer-style soundproof test chamber designed for minimal noise and radio frequency interference. It is ideal for audio and noise measurements of wireless electronic devices, both on production lines and in laboratories.
When used in conjunction with electroacoustic and radio communication testers, the CRY7865 is well-suited for evaluating Bluetooth® headphones, Bluetooth® speakers, laptops, and more. Its drawer-style design facilitates integration into automated production lines, streamlining testing processes and enhancing efficiency.
| Case Type | Drawer |
|---|---|
| Operation | Automatic |
| Feature | Common |
| Outer color | White |
| Size | 1530(L)*1280(W)*1750(H)mm |
| Sound Isolation Performance | 300Hz-1000Hz isolation>40dB, 50Hz-300Hz isolation>20dB, Above 1000Hz isolation>60dB (1/3 octave) |
| Power Supply | AC 100-220V, 50/60Hz |
| Pneumatic pressure | >5kg/cm2 |
| Weight | About 830Kg |
| Inner size | 600(L)*680(W)*740(H)mm |
| Rated power | 15W |
| RF Shielding Performance | 1 ~ 6GHz >70dB (Without I/O interface), 100MHz – 6GHz 70dB (Without I/O interface) |
