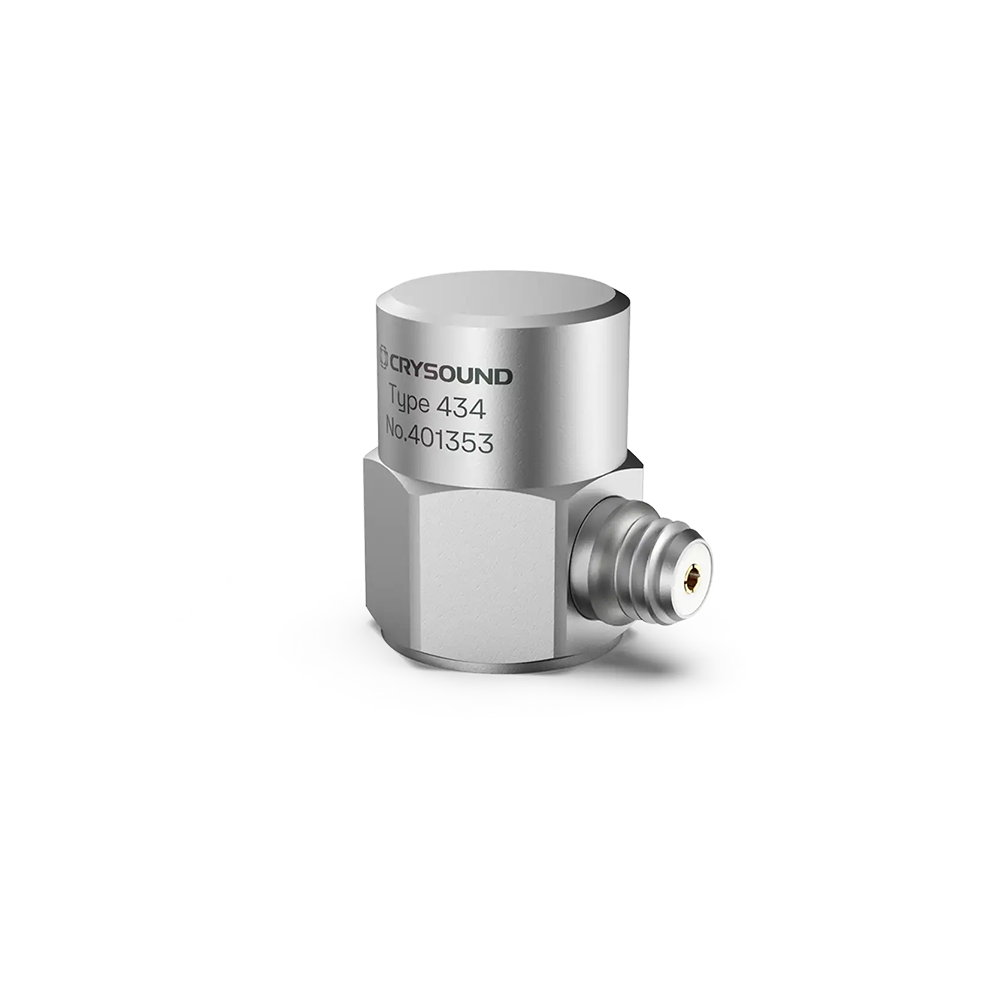

The CRY434 is a single-axis acceleration sensor featuring a 10-32 UNF output on the side for easy mounting with a 10-32 UNF bolt. It is well-suited for detecting small movements in laboratory and scientific research, as well as for monitoring the vibration status of industrial equipment in real-time.
The CRY434 can be paired with armored shielded cables to accurately measure vibration parameters such as acceleration, velocity, and displacement, even in environments with high levels of industrial or electrical interference.
| Output | IEPE |
|---|---|
| Sensitivity (25℃) | 100mV/g(160Hz) |
| Axis | Uniaxial |
| Measuring Range (peak) | ±50g pk |
| Frequency Response Range | 0.5Hz to 8kHz(±1dB) |
| Output Impedance | Bias Voltage |
| Full Scale Output (peak) | ±5V |
| Noise | ＜50uV |
| Maximum Shock Level | ±3000g |
| Connector Type | Side M5 |
| Construction | Shear |
| Piezoelectric Materials | PZT-5 |
| Transverse Sensitivity | ≤5% |
| Excitation Voltage | Bias Voltage |
| Constant Current Source | 2mA to 10mA |
| Bias Voltage | ＜9V to 12V |
| Operating Temperature | -40℃ to 120℃(-40℉ to 248℉ ) |
| Threaded Interface | M5 |
| Case Material | 304 Stainless Steel |
| Weight | 13g |
