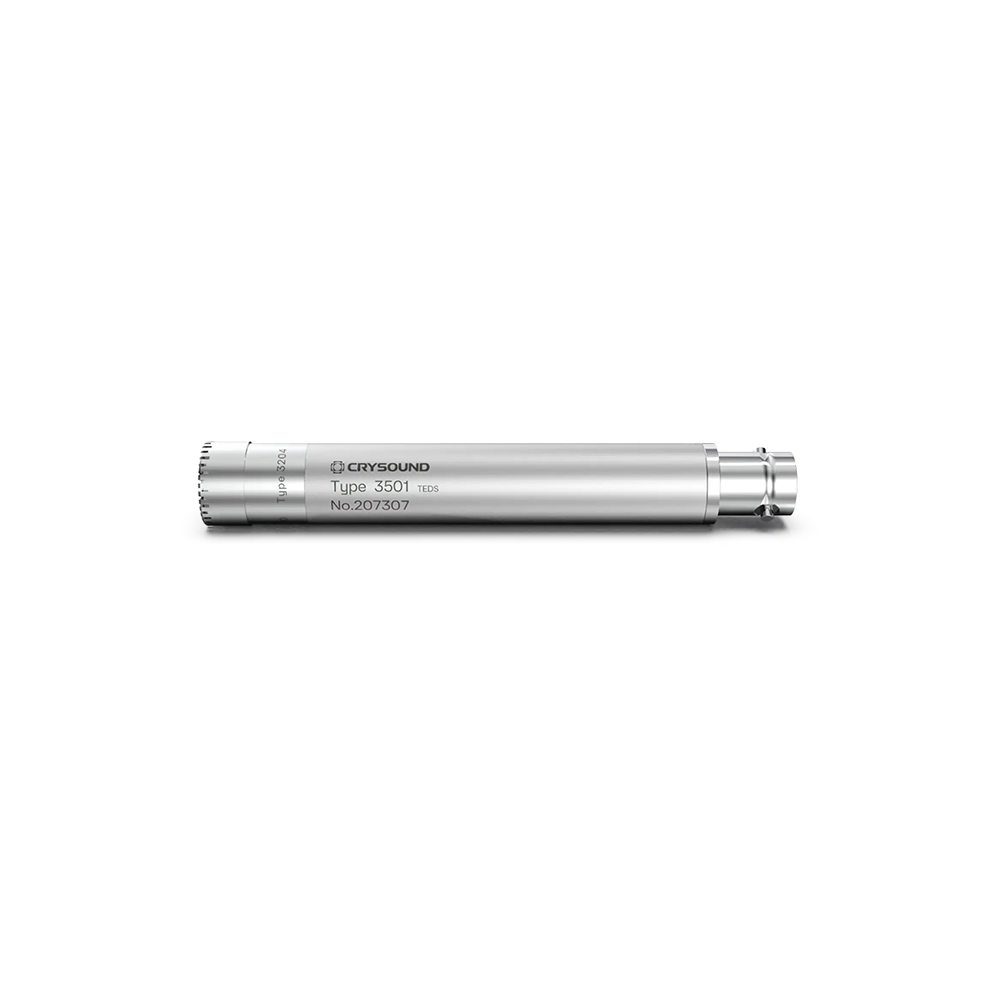

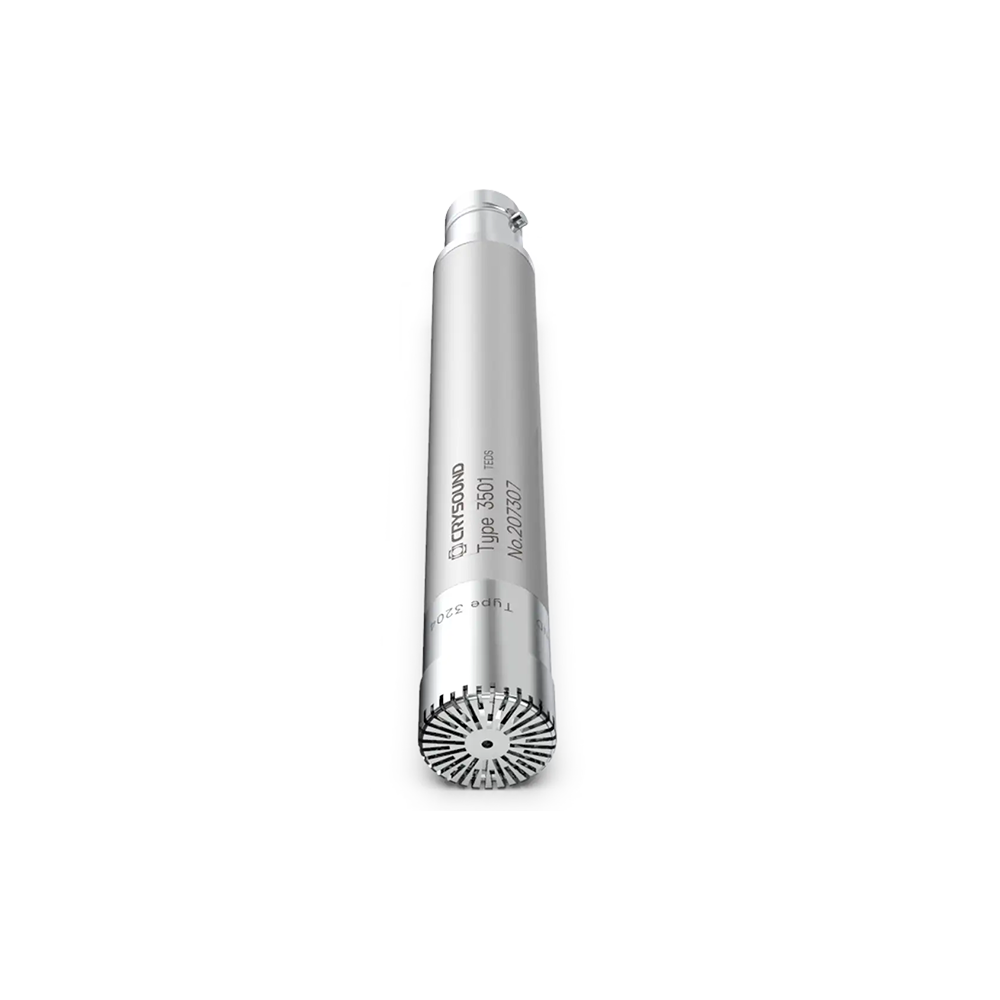

CRY3204-S01 is a 1/2-inch pressure-field prepolarized measurement microphone and preamplifier set designed for use with a coupler for related electroacoustic testing.
The distinctive design of the CRY3204-S01 makes it highly effective for testing a wide range of electroacoustic devices, including speakers and headphones. Its versatility also extends to acoustic design research and audio equipment calibration, making it a valuable tool in these specialized fields.
| Size | 1/2″ |
|---|---|
| Field Type | Pressure field |
| Polarization | Prepolarized |
| Frequency Response Range | 3.15Hz to 10kHz±2dB |
| Temperature Stability | 0.012dB/℃(-10 to +50℃) 0.007dB/℉(+14 to +122℉) |
| Operating Humidity Range | 0 to 90%RH no condensation |
| Pressure Equalization Vent | Rear vented |
| Output Impedance | ＜50Ω |
| Power Supply | IEPE( 2 mA to 10mA ) |
| Connector Type | BNC |
| Polarization Voltage | 0V |
| Operating Temperature | -30 to +70℃ (-22 to +158℉) |
| Static Pressure Stability | -0.01dB/kPa |
| Humidity Stability | < 0.1dB (0 to 90%RH no condensation) |
| IEC 61094-4 Type | WS2P |
| Nominal Operating Current | 4 mA |
| Diameter with Grid | 13.2mm (0.52") |
| Height with Grid | 92mm (3.62") |
