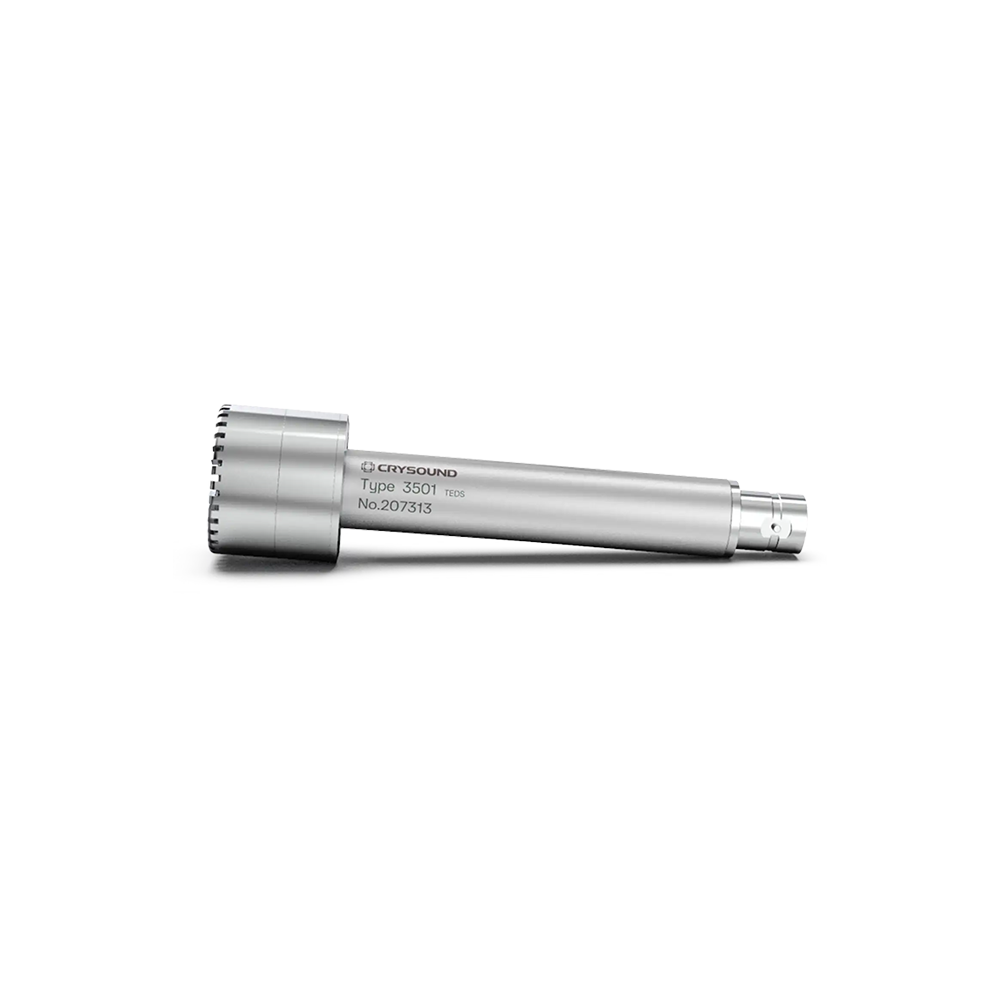

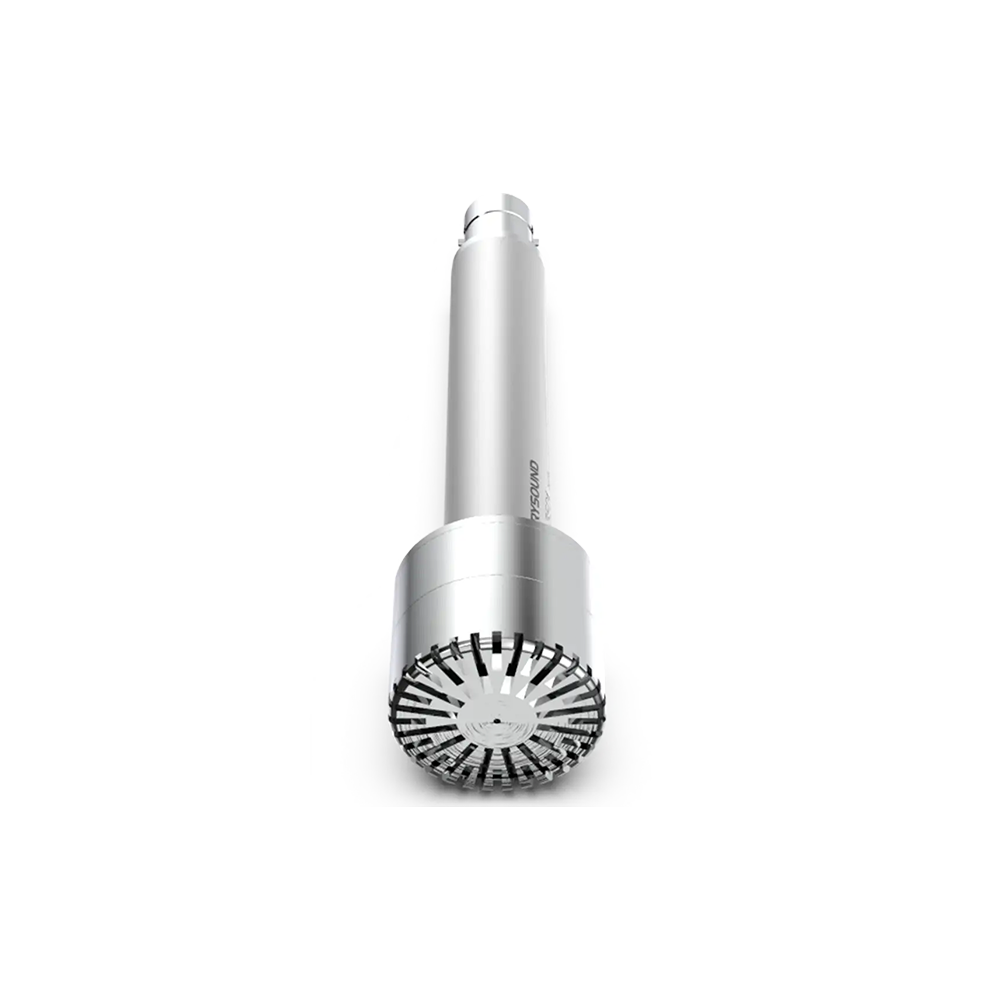

The CRY3102-S01 is a 1-inch pressure-field prepolarized measurement microphone and preamplifier set designed to be used in conjunction with a coupler chamber, particularly suitable for headphone testing and audiometer measurements.
The CRY3102-S01’s distinctive design delivers remarkably low self-noise, making it an excellent choice for precise electroacoustic testing. Its superior accuracy and stability further establish it as a dependable tool for advanced acoustic research and development.
| Size | 1″ |
|---|---|
| Field Type | Pressure field |
| Polarization | Prepolarized |
| Frequency Response Range | 4Hz to 8kHz±2dB |
| Temperature Stability | 0.015dB/℃(-10 to +50℃) 0.008dB/℉(+14 to +122℉) |
| Operating Humidity Range | 0 to 90%RH no condensation |
| Pressure Equalization Vent | Rear vented |
| Output Impedance | ＜50Ω |
| Power Supply | IEPE( 2 mA to 10mA ) |
| Connector Type | BNC |
| Polarization Voltage | 0V |
| Operating Temperature | -20 to +60℃ (-4 to +140℉) |
| Static Pressure Stability | -0.01dB/kPa |
| Humidity Stability | < 0.1dB (0 to 90%RH no condensation) |
| IEC 61094-4 Type | WS1P |
| Nominal Operating Current | 4 mA |
| Diameter with Grid | 23.77mm (0.936") |
| Height with Grid | 94.3mm (3.712") |
