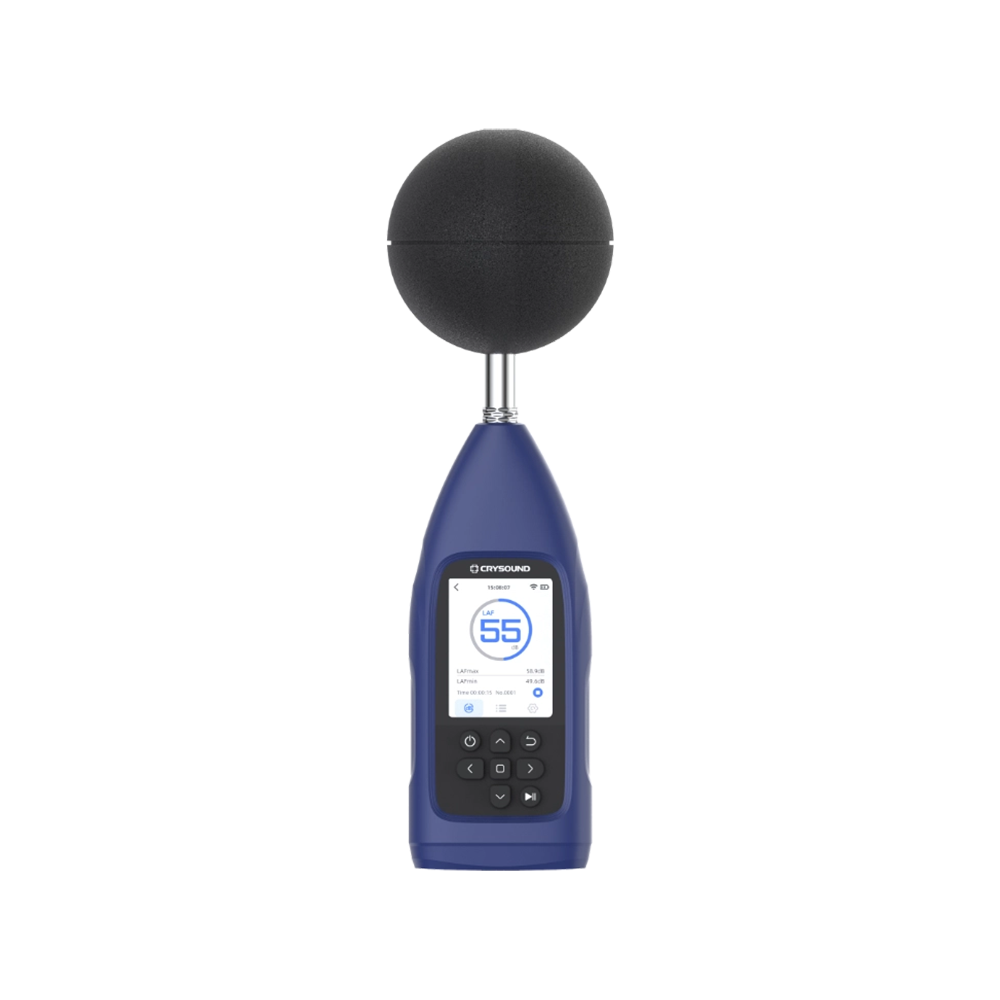

The CRY2833 sound level meter complies with the IEC 61672-1:2013 Class 1 standard and is designed for measuring occupational, environmental, and product noise. Its design combines aesthetics with ergonomics, and the 2.8-inch high-resolution color screen offers both convenience and user comfort.
This equipment can be used in various fields such as environmental protection, industry, and occupational health for applications including environmental noise measurement, product quality control, and occupational noise assessment.
| Applications | FFT Analysis, Octave Analysis, Sound pressure level |
|---|---|
| Compliance Standard | IEC61672-1: 2013 Class 1 |
| Operating Temperature | -20 to +60℃ (-4 to +140℉) |
| Reference level | 94dB@1kHz/114dB@1kHz |
| Environment | Temperature 23°C, Pressure 101.325kPa, Humidity 50% RH |
| Self-generated Noise Level | ≤16dBA |
| Size | L×W×H=249×76×30.5mm |
| Operation | Button |
| Power Supply | 5V USB-C or DC |
| Frequency Range | 10Hz – 20kHz |
| Time Constants | Time Weighting: S, F, I |
| Measurement Function | 1/1 Oct, Integral Measurement, Monitoring, Sound Exposure Measurement, Statistical Analysis |
| Interface | AC/DC, BT/WiFi or GPS (Select one), RS232, USB |
| Operating Humidity Range | ≤90% RH |
| Calibration | Sound Calibrator Class 1 |
| Microphone Type | CRY333 |
| Weight | 330g (With battery) |
| Display | 320×240 TFT Display |
| Battery Type | 4×AA battery |
| Linear Operating Range | 25dBA ~ 140 dBA |
| Internal Noise | ≤17dBA |
| Weighting Filters | Frequency weighting: A, C, Z |
| Statistics | L10, L5, L50, L90, L95 |
| Storage | MicroSD Card 32 GB (removable & upgradeable up to 64 GB) |
