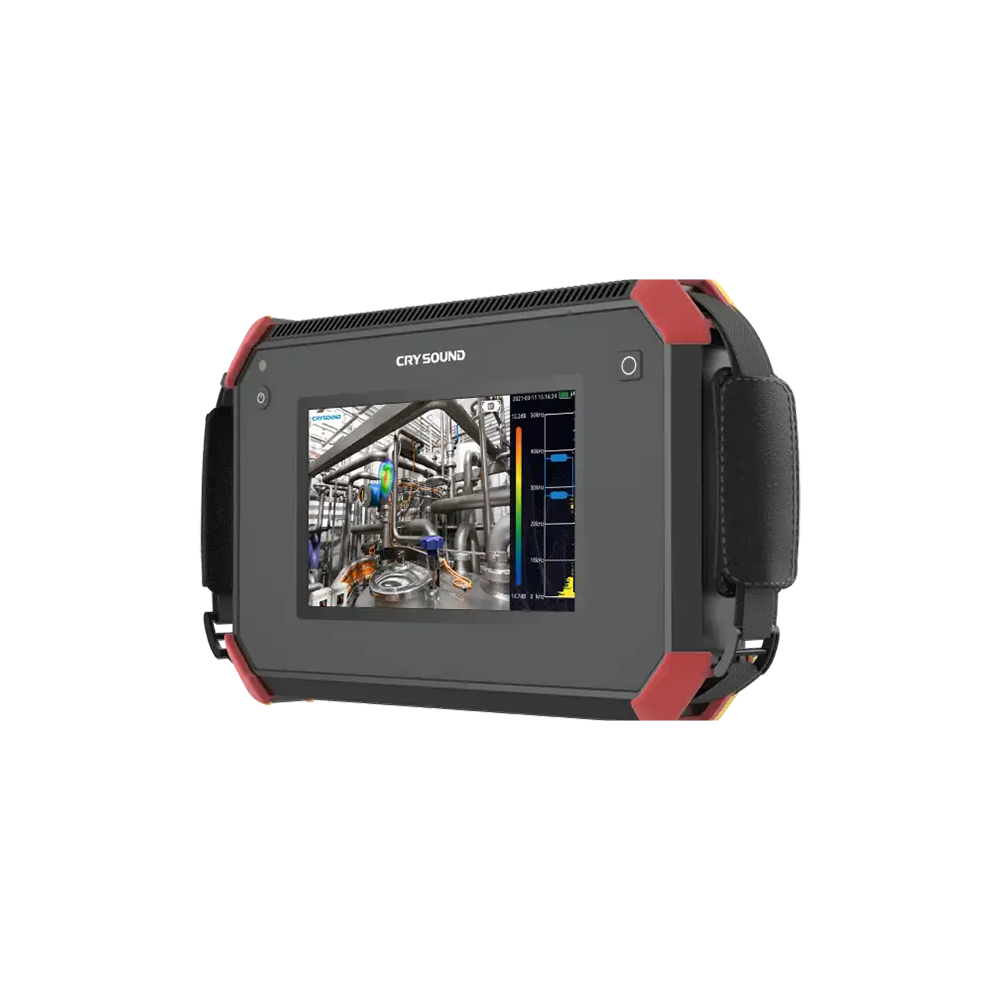

The CRY2624 is a 128-mic industrial acoustic imaging camera and is designed for use in explosive environments within the chemical and energy industries. Featuring a robust aluminum alloy shell, this device is built to withstand complex and dynamic work conditions. It offers real-time sound image display, significantly improving the speed of detecting pressurized or vacuum leaks compared to other methods.
The CRY2624 is ATEX certified with a rating of II 3G Ex ic IIC T5 Gc, ensuring safe operation in potentially explosive atmospheres while adhering to stringent safety standards. The device supports camera and video modes, providing flexible on-site data recording. With an expandable, large-capacity TF storage card, test results can be quickly exported and reported.
| Application | Leak/vacuum detection, Partial discharge |
|---|---|
| Intrinsic safety | Intrinsic safety |

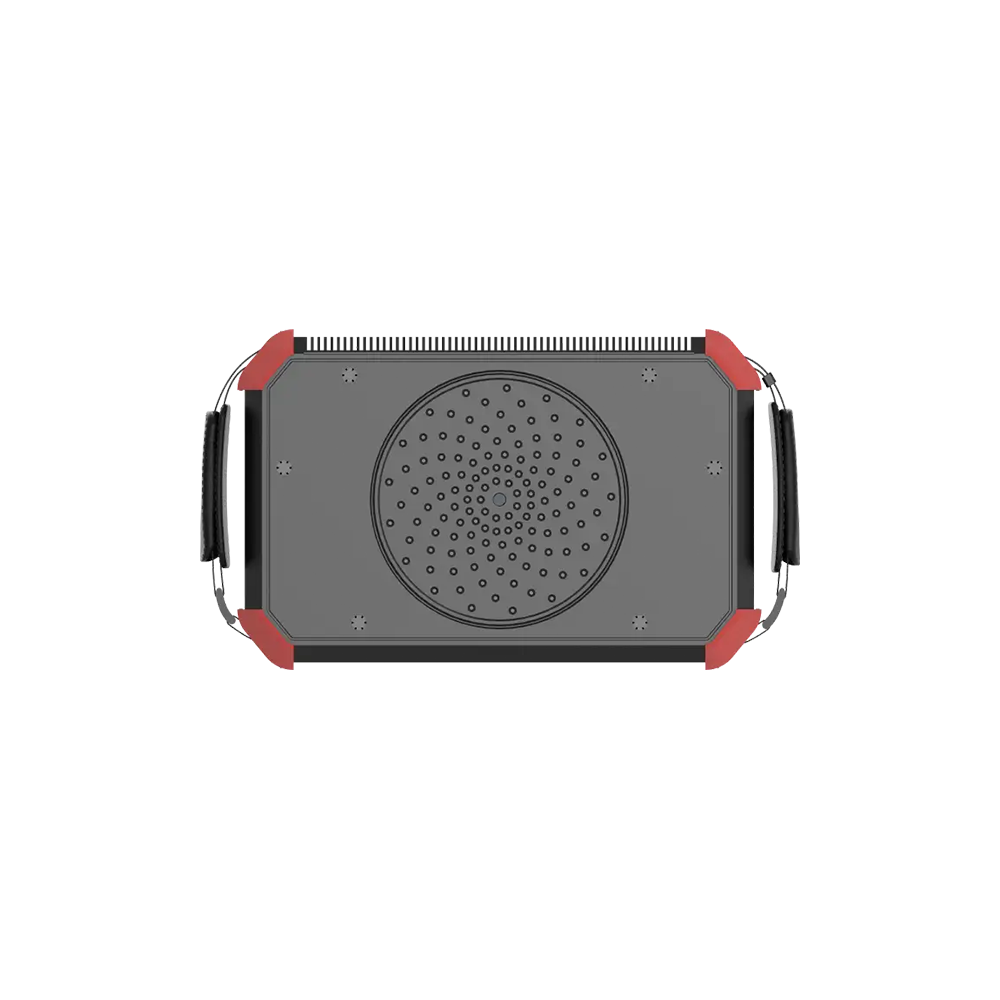

| Microphone Array | 128 channels MEMS microphone |
| Additional plugin | N/A |
| Dynamic Range(re.20uPa) | 0.5dB to 12dB, user adjustable |
| Auto max/min dB gain | User-settable, minimum test bandwidth 1kHz |
| Camera FOV | 62° |
| Screen size | 7inch |
| Brightness | Adjustable |
| Minimum Detectable Leak | 10m 5bar 0.92ml/s, 0.5m 5bar 0.55ml/s |
| Camera Pixel | 8M pixel |
| Source | Show single or multiple sources |
| Sound Pressure Levels (SPL) | 25.7 – 132.5dBA |
| Focal Length | 3.04 mm Fixed focal length |
| Resolution | 1024 × 600 (614,400 pixels) |
| Touchscreen | Capacitive touchscreen |
| Storage | 8G internal, MicroSD card, at least 64G, expandable to 256G |
| Video Length | 5 minutes |
| Battery Capacity | 6600mAh @ 7.2V, External battery package, continuous |
| Battery Life | 4+6 hours operation time |
| Charger | USB Type-C port, USB PD protocol supported, 15W |
| Energy management | Sleep/Auto power off modes |
| Storage Temperature | -20 °C to +60 °C (-4 °F to 140 °F) |
| Level of Protection | IP54 |
| Self-diagnostic notification | Array-health test function to identify when microphone array needs attention |
| Certification | CE, FCC, RoHS-compliant |
| Report | Gas/Electricity/ISO 50001-compliant |
| Interface | 3.5 mm – Audio Jack Headphone output, USB 3.0 Type-C USB host port |
| Weight | 1.7kg |
| Number of digits | 16bit |
| Sound image frame rate | At least 25 FPS |
| Test Distance | 0.3m – 120m |
| Photo notes | Up to 5 photos notes for reference |
| Standard palettes | Blue-Red, Grayscale, Ironbow |
| Data Format | .jpg (picture), .mp4 (video), .wav (audio) |
| Data Export | microSD card |
| Power consumption | 15W for battery charge, 29W for maximum power consumption |
| Operating Temperature | -20 to +50 ℃, 10 to 95 %，no cond. |
| Charging temperature | 10℃ to +45℃ |
| Size | 272mm × 174mm × 42mm |
| Warranty | 2 years |
| Supported operation system | Linux |
| Language | Cambodian, Chinese, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Vietnamese |
| Analysis | Discharge type discrimination, Leakage assessment, Spectrogram, Spectrum, Waveform |
