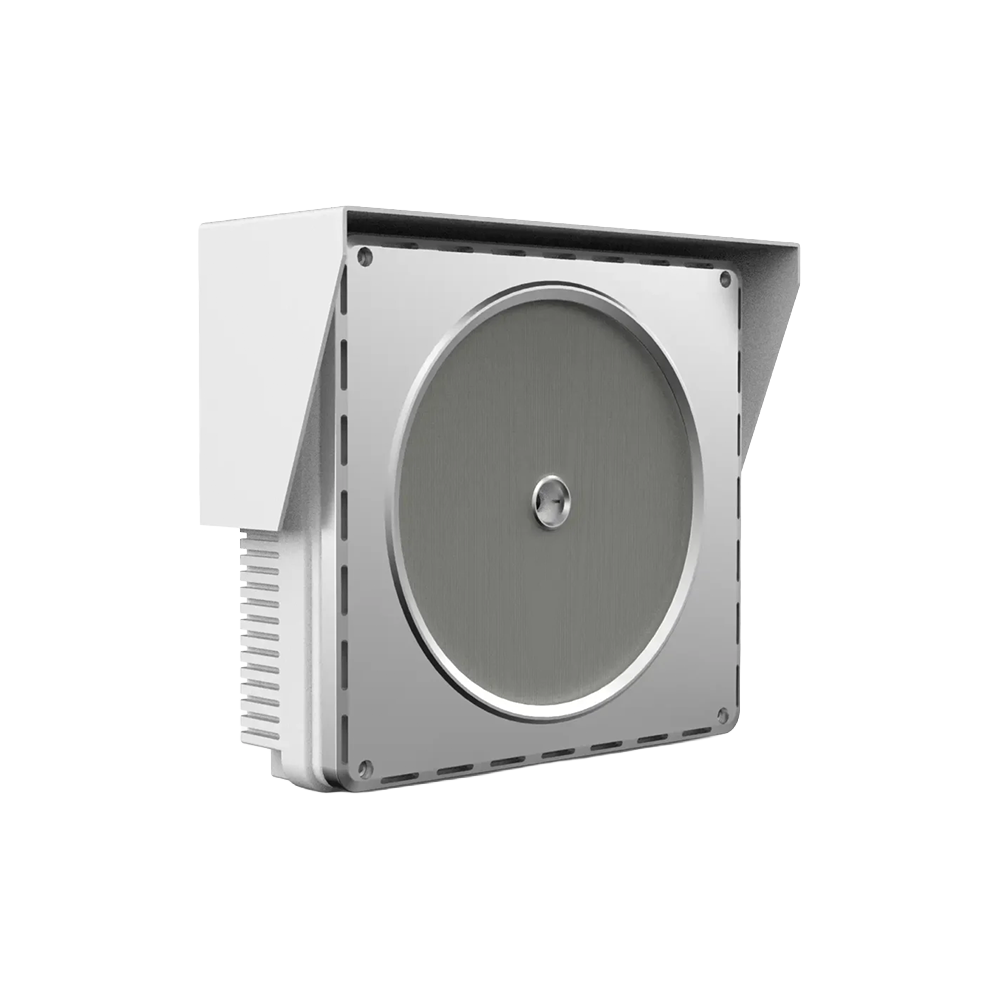

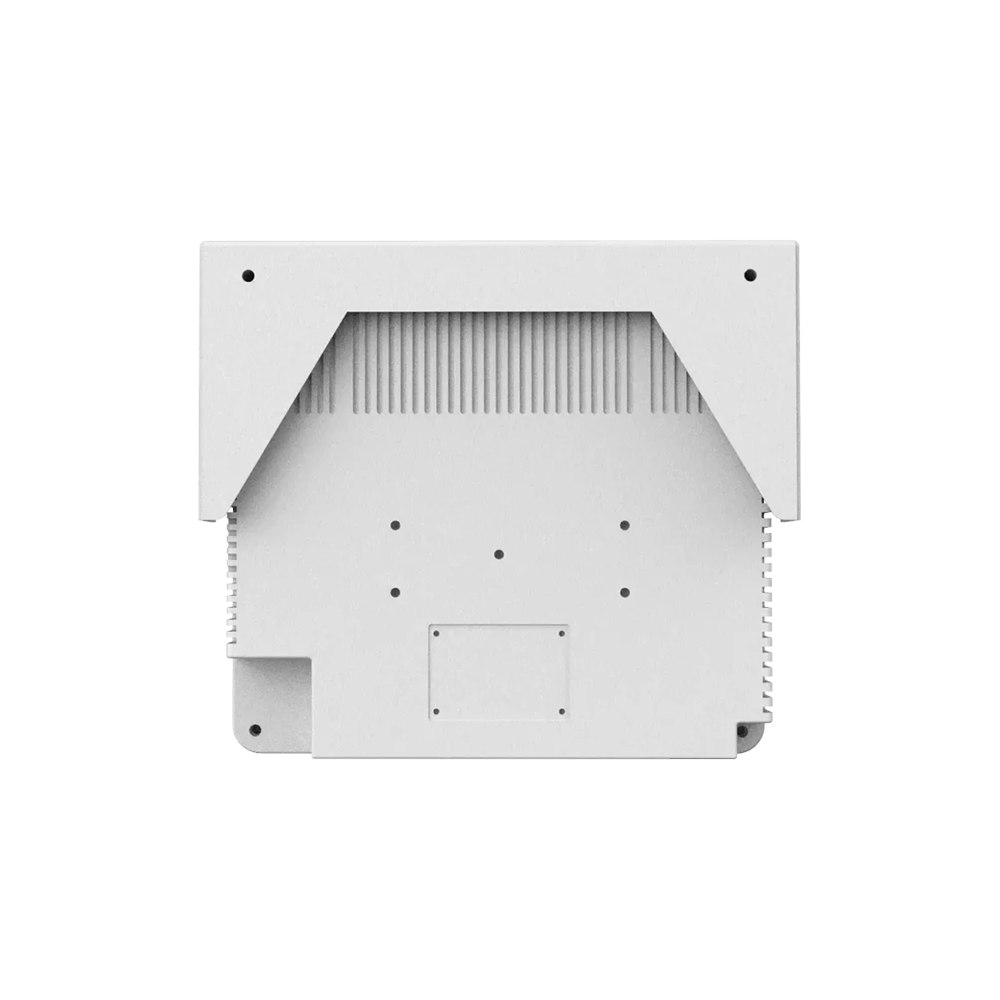

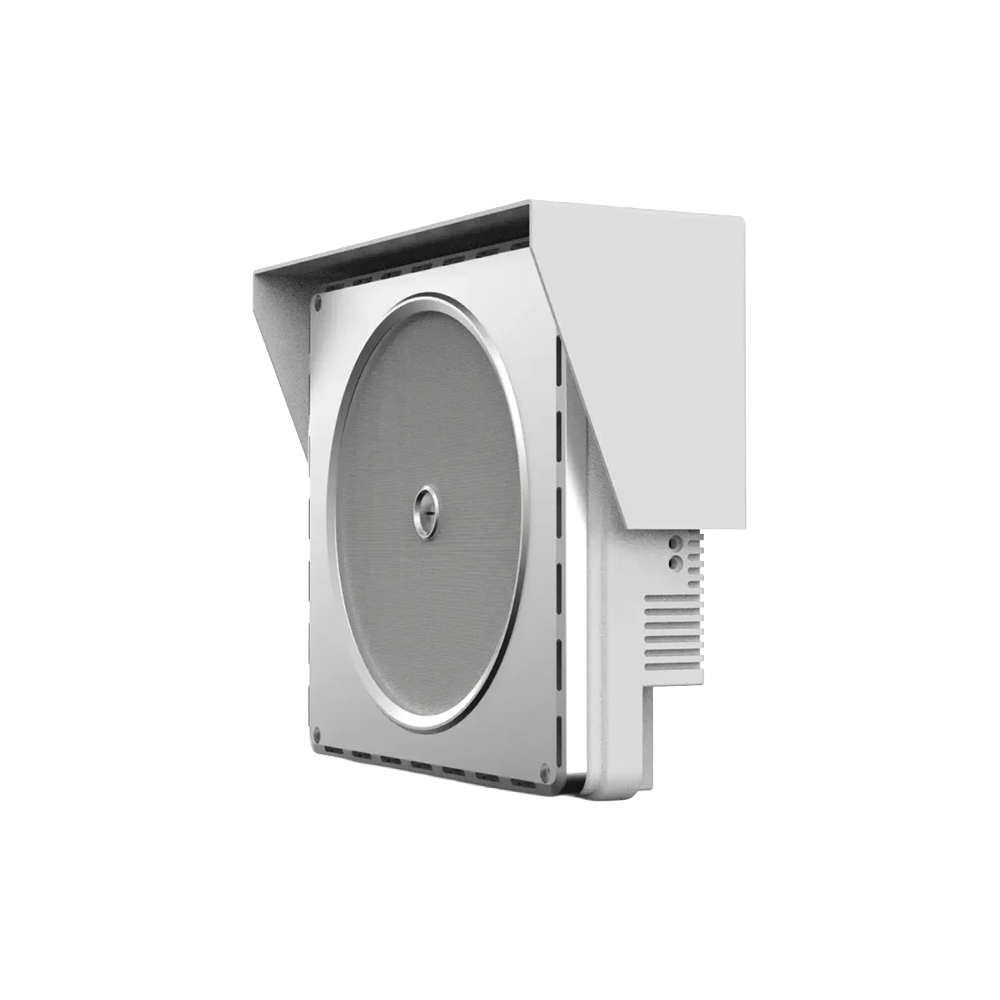

The CRY2623M Fixed Acoustic Imaging Camera utilizes advanced microphone array beamforming technology to map sound source distribution and integrates with high-definition cameras for real-time video capture.
This system supports remote monitoring via local networks (LAN, WiFi) and wide area networks (WAN, ADSL, 4G, and private networks), facilitating industrial digital transformation. It enables real-time video monitoring and provides valuable insights into product quality and safety, allowing for the rapid detection of issues in compressors, pumps, pipes, cables, and more. With an IP66 protection rating, the CRY2623M is built to perform reliably in various harsh environments.
| Application | Leak/vacuum detection, Online monitoring, Partial discharge |
|---|---|
| Intrinsic safety | Non-intrinsic safety |
| Microphone Array | 128 channels |
| Additional plugin | N/A |
| Interface | RJ45 |
| Camera Pixel | 8M pixel |
| Test Distance | 0.5 – 50m |
| Size | 183mm × 169mm × 85.35mm |
| Operating Temperature | -20 to +60℃ (-4 to +140℉) |
| Power consumption | 14W |
| Connector Type | Bottom 1/4 -20UNC thread/M5 screw fixing |
| Frequency Response Range | 2kHz to 48kHz |
| Data communication | RTSP/RTMP streaming transmission |
| Sound image frame rate | 25FPS |
| Weight | 1.6kg |
| Storage | 8G internal storage, 64G external microSD card |
| Operating Voltage | DC12 – 20V |
| Level of Protection | IP66 |
